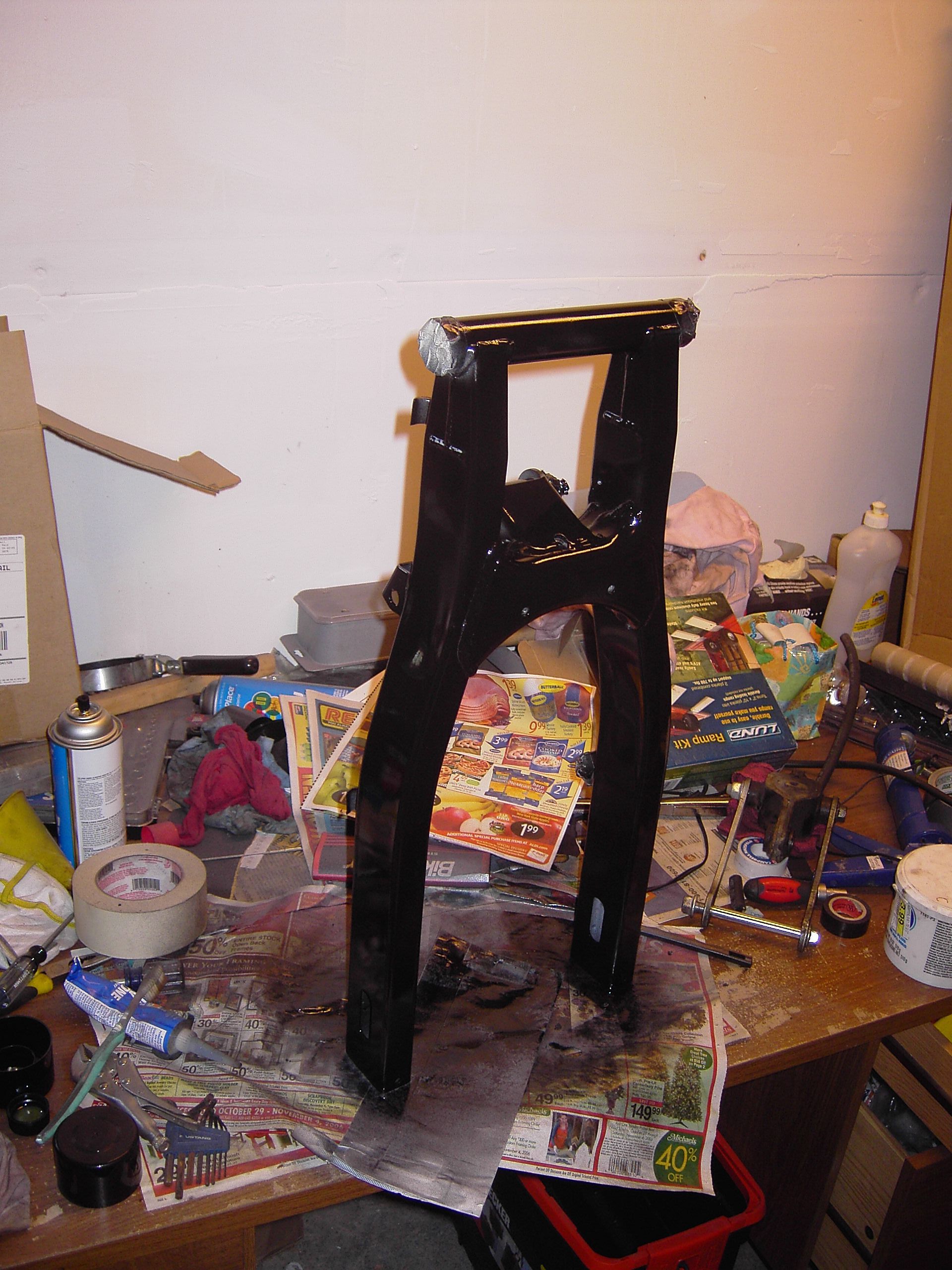

After the primer had set, I put on a coat of gloss black.  I will later finish with several coats of flat black to match the frame, but I didn't feel like shopping so I used what I had in the garage.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1192.JPG -- Gallery: http://gsproject.codefarm.org/

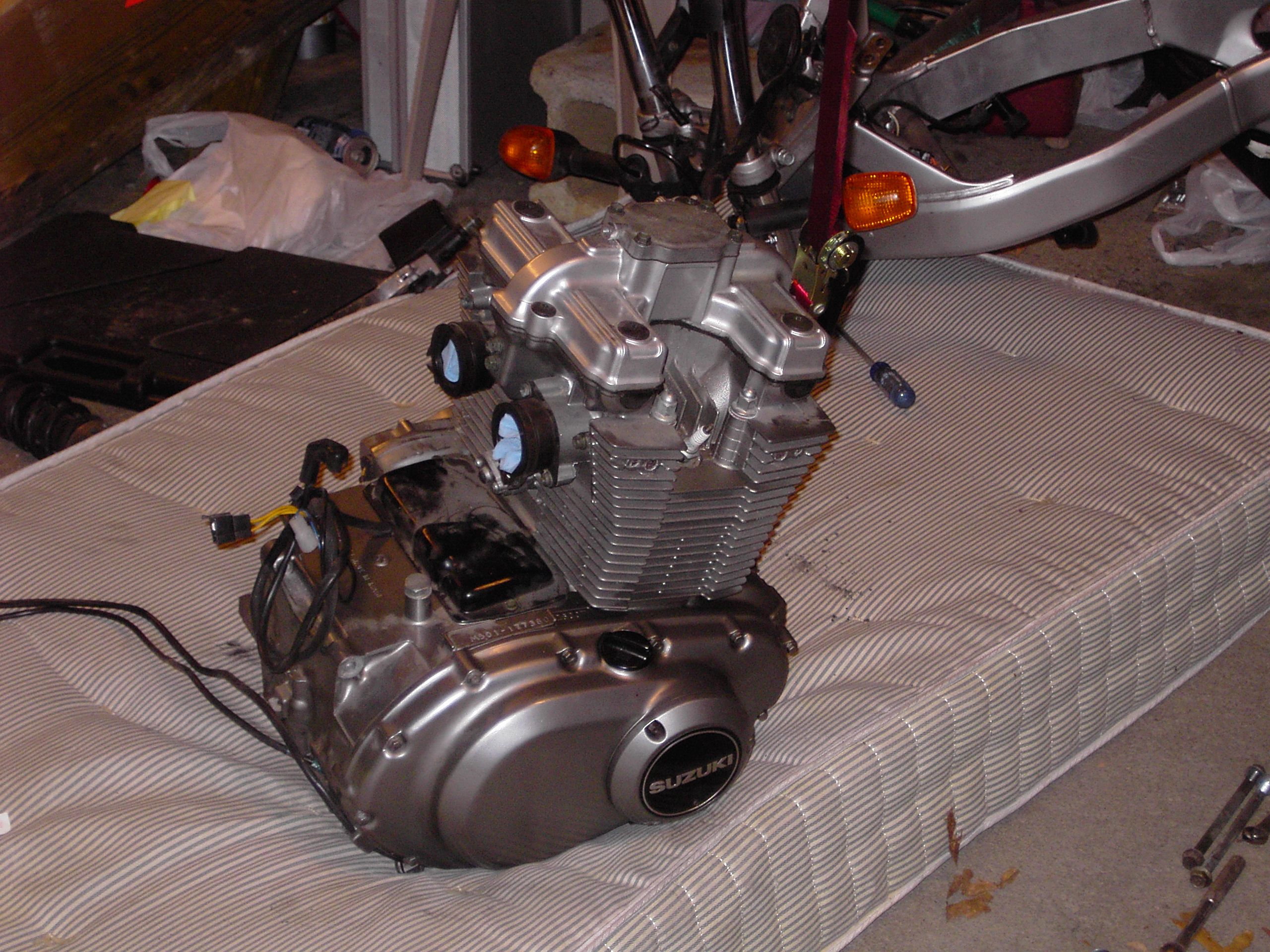

A lot of things happened before this picture.  I read on some web site somewhere to push the bike over on a mattress and remove the mounts.  This lets you basically "drop" the engine right out without damaging it.  I chose to use this method because there was no one to help me and it was midnight, so I couldn't call anyone to help me.  It worked great.  This is going to need some cleaning before it goes back in the guest room.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1194.JPG -- Gallery: http://gsproject.codefarm.org/

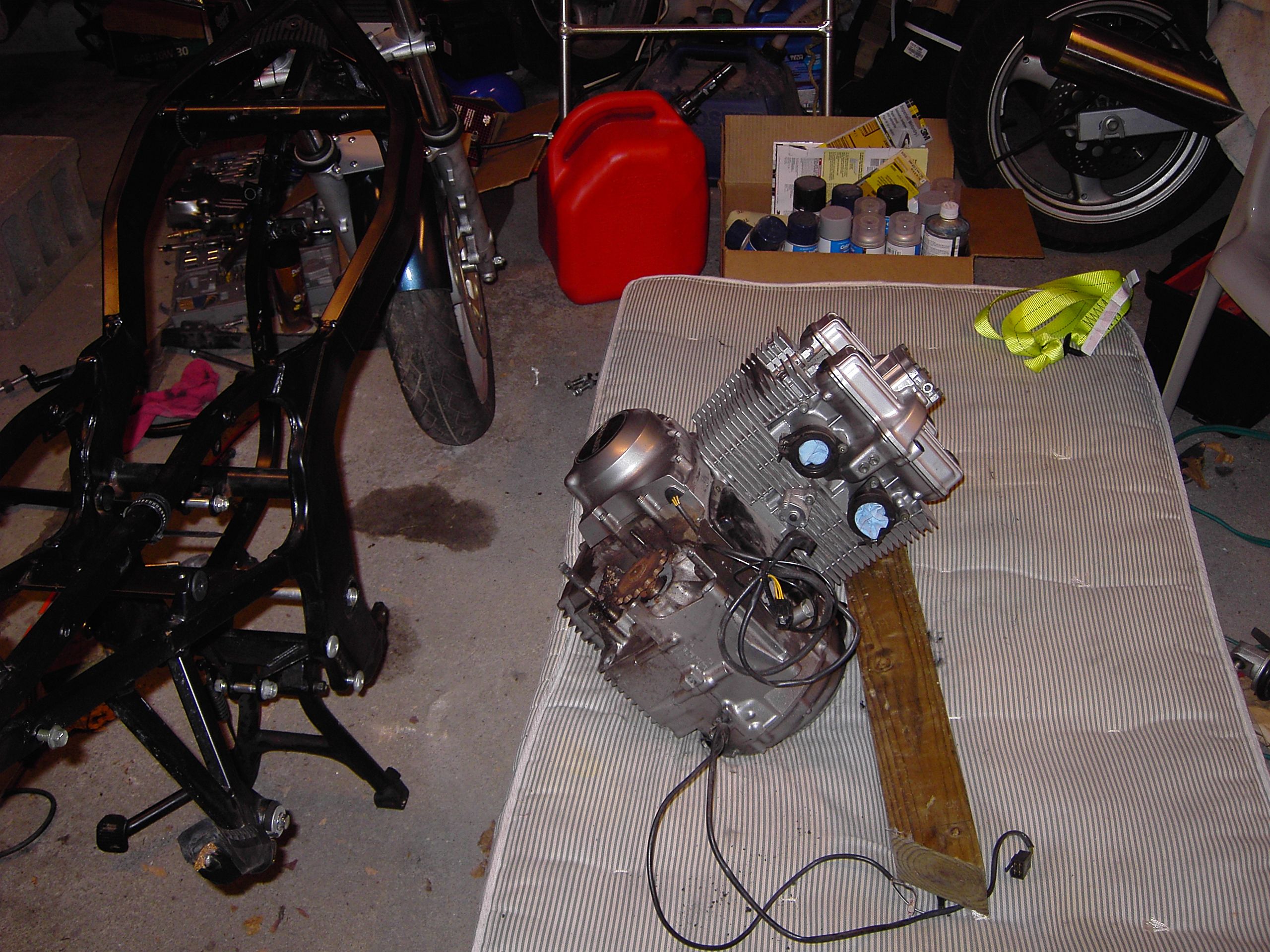

I set the engine sort of angly to prepare to set the new frame down on it.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1196.JPG -- Gallery: http://gsproject.codefarm.org/

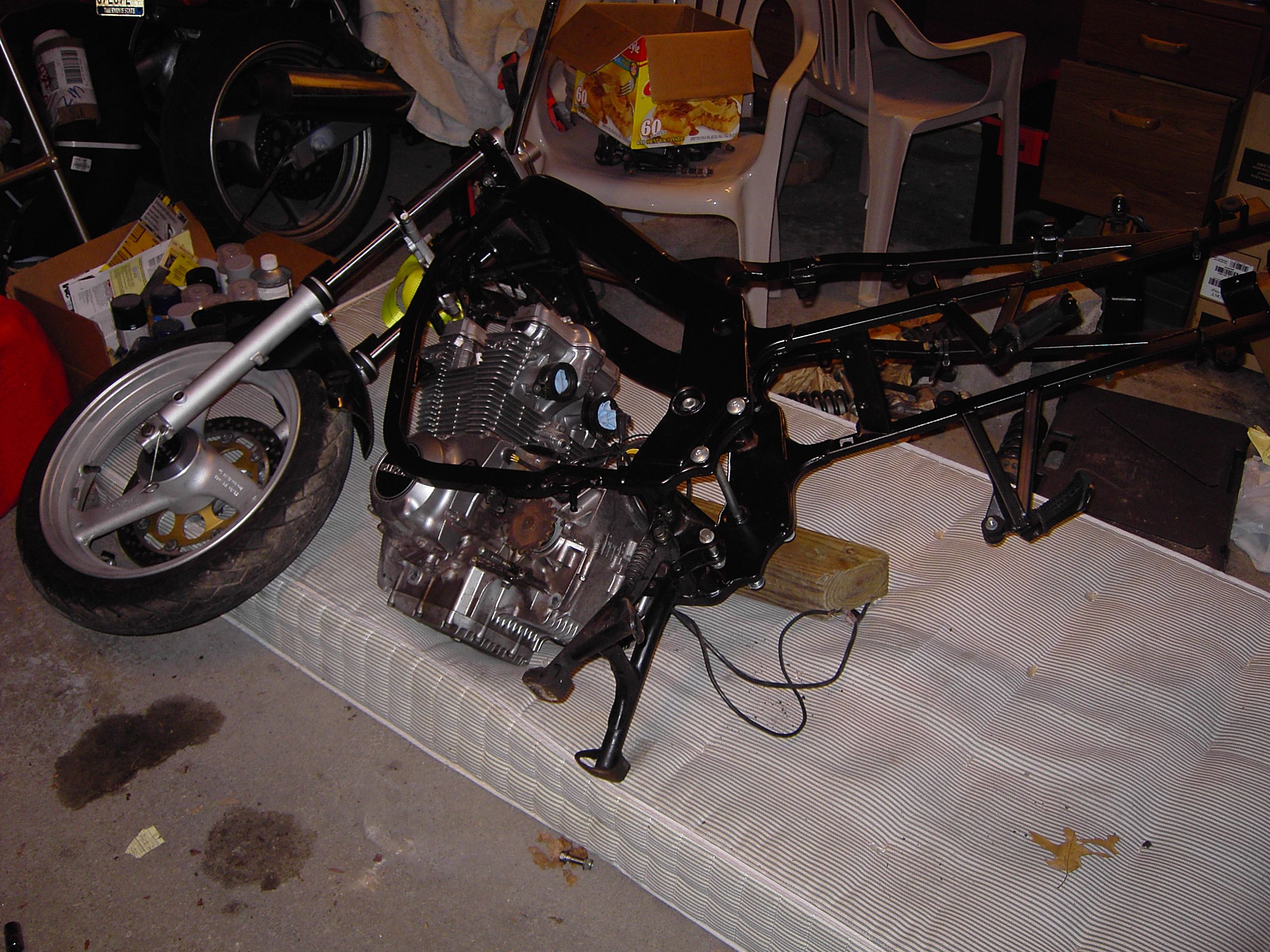

And there we go.  You can see from this picture that I buy my frozen waffles in bulk.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1197.JPG -- Gallery: http://gsproject.codefarm.org/

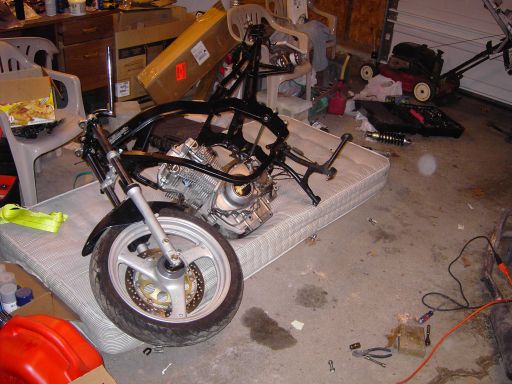

Yeah, so basically at this point I wrestled the engine and frame, using the flexibility of the mattress to my advantage until I could get the rear mounting bolts in place.  If my wife walked in at this stage, she would have divorced me for making the nasty with my motorcycle.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1198.JPG -- Gallery: http://gsproject.codefarm.org/

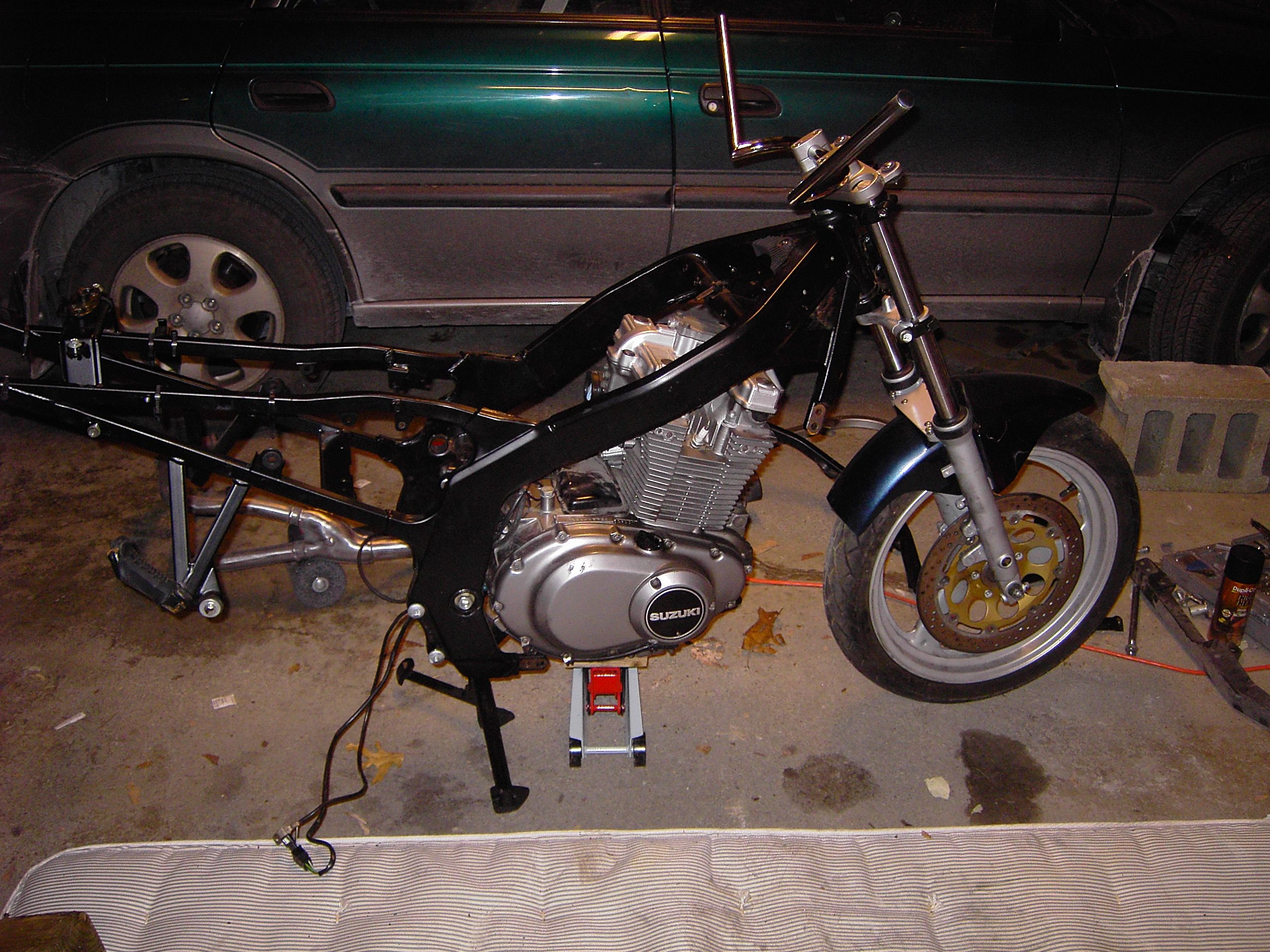

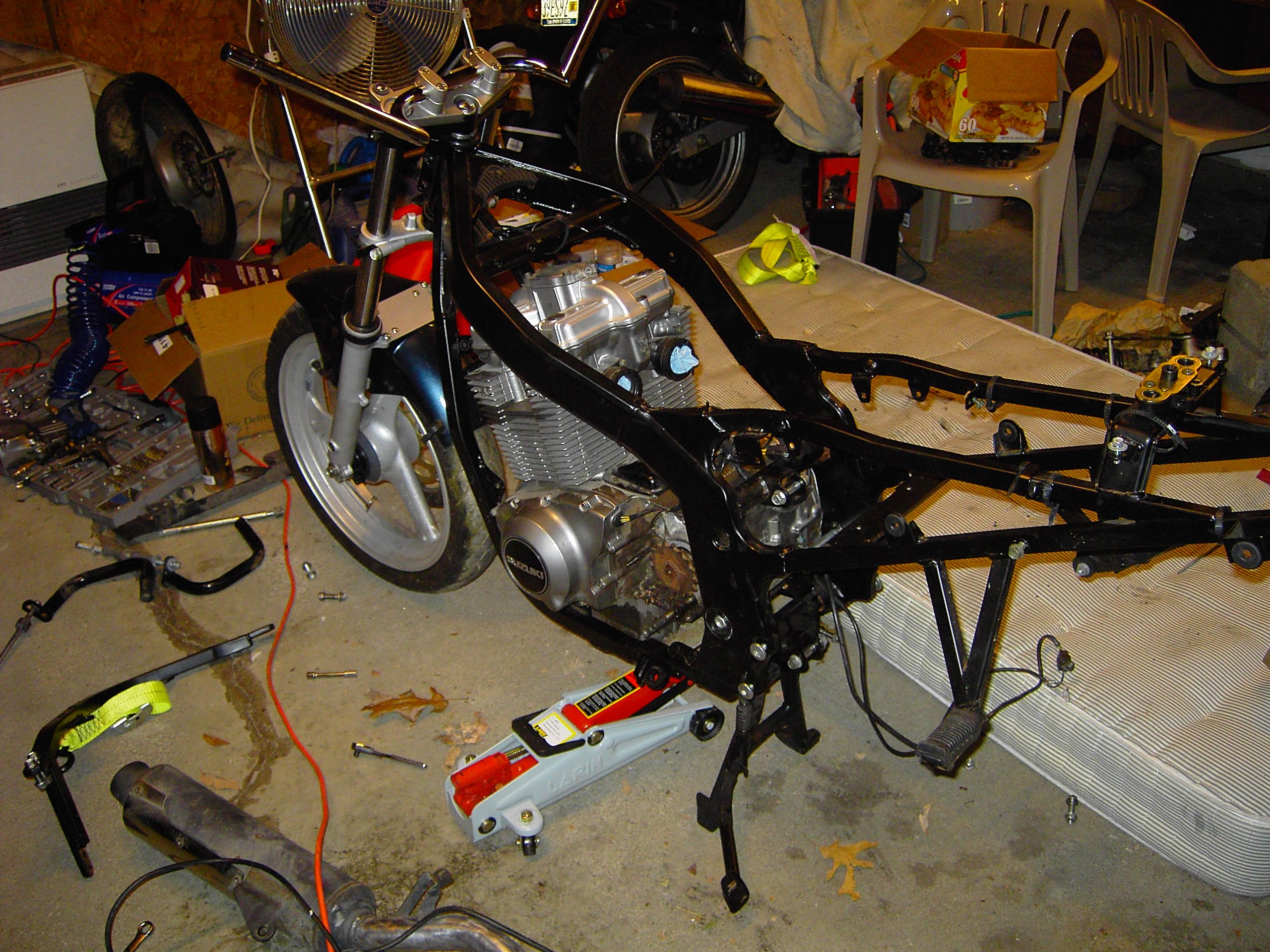

I levered the bike back up onto the center stand, and braced the engine with a floor jack.  I felt really good that nothing was broken.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1199.JPG -- Gallery: http://gsproject.codefarm.org/

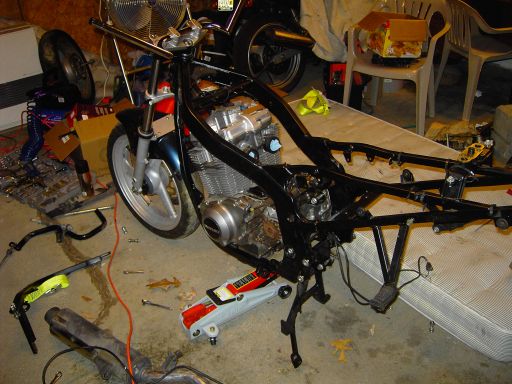

After this I put the side rail back on and installed all the mounts.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1201.JPG -- Gallery: http://gsproject.codefarm.org/

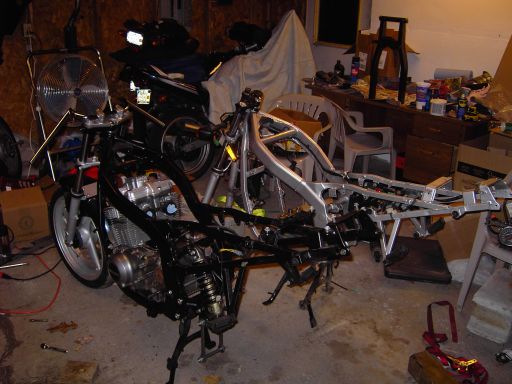

I installed the shock because it was 2am and I wasn't thinking right.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1206.JPG -- Gallery: http://gsproject.codefarm.org/

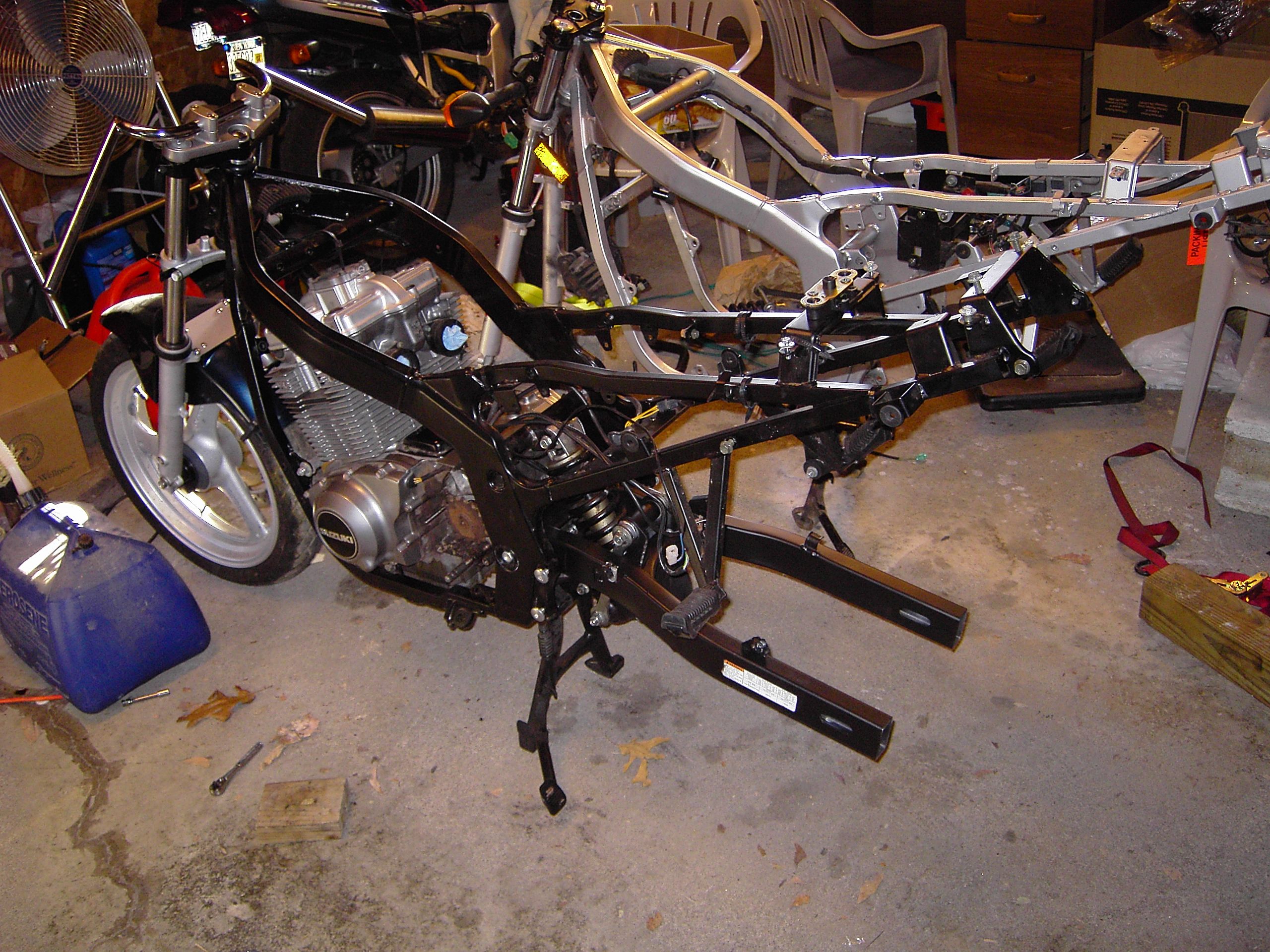

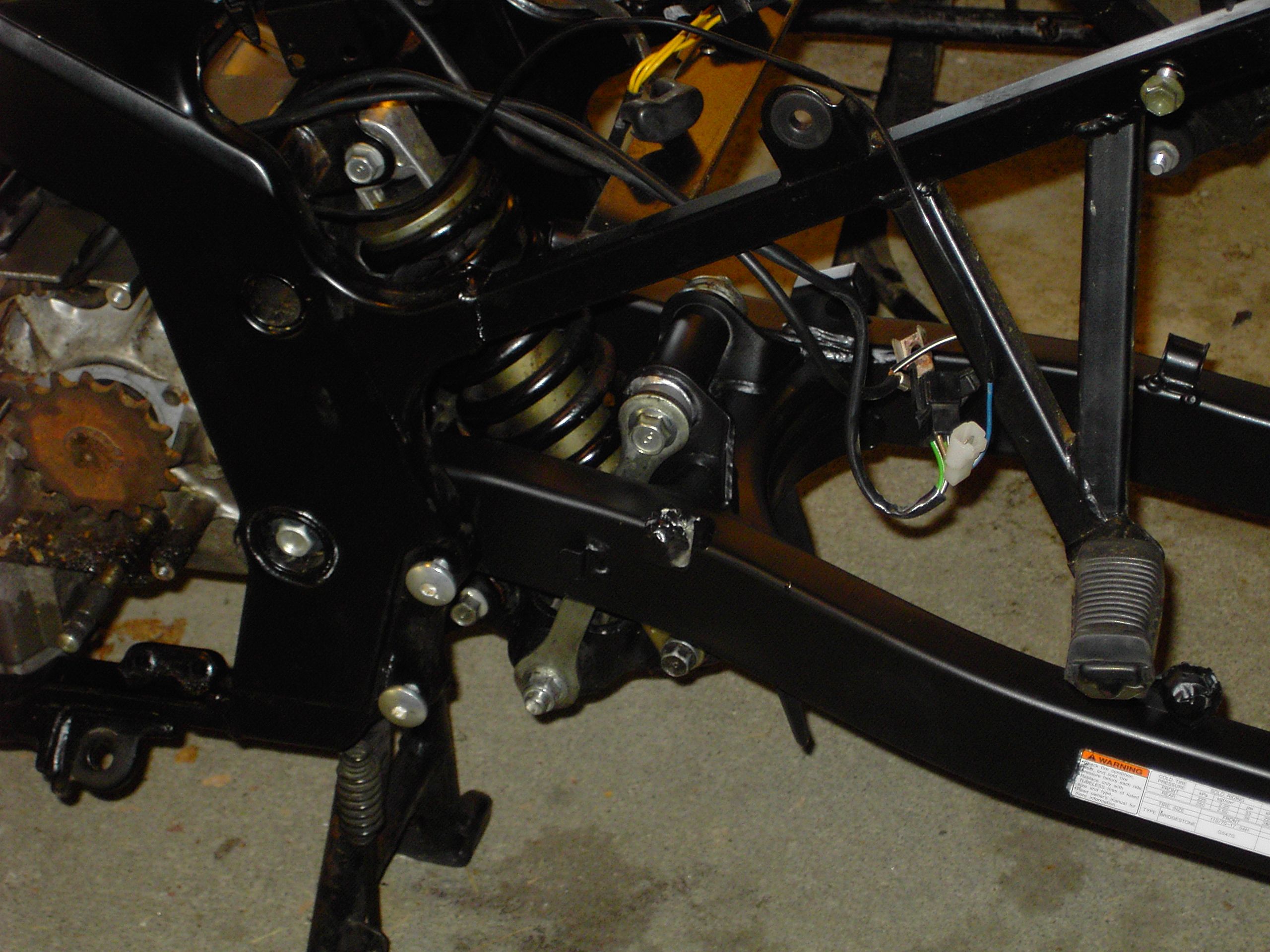

The next day (today, Sunday) I removed the shock, installed the swingarm, and installed the shock.  The swingarm is now flat black.  You can see I masked off the sticker that shows the tire pressures (because I forget all the time).  That was really dumb.  Don't do that.  There's a nasty ridge there and the paint likes to peel from there.  Live and learn.  In a few years I'll be forced to redo it.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1208.JPG -- Gallery: http://gsproject.codefarm.org/

This just shows how well the old paint matches the new paint.  It looks different in the photo, but that's a lighting trick.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1209.JPG -- Gallery: http://gsproject.codefarm.org/

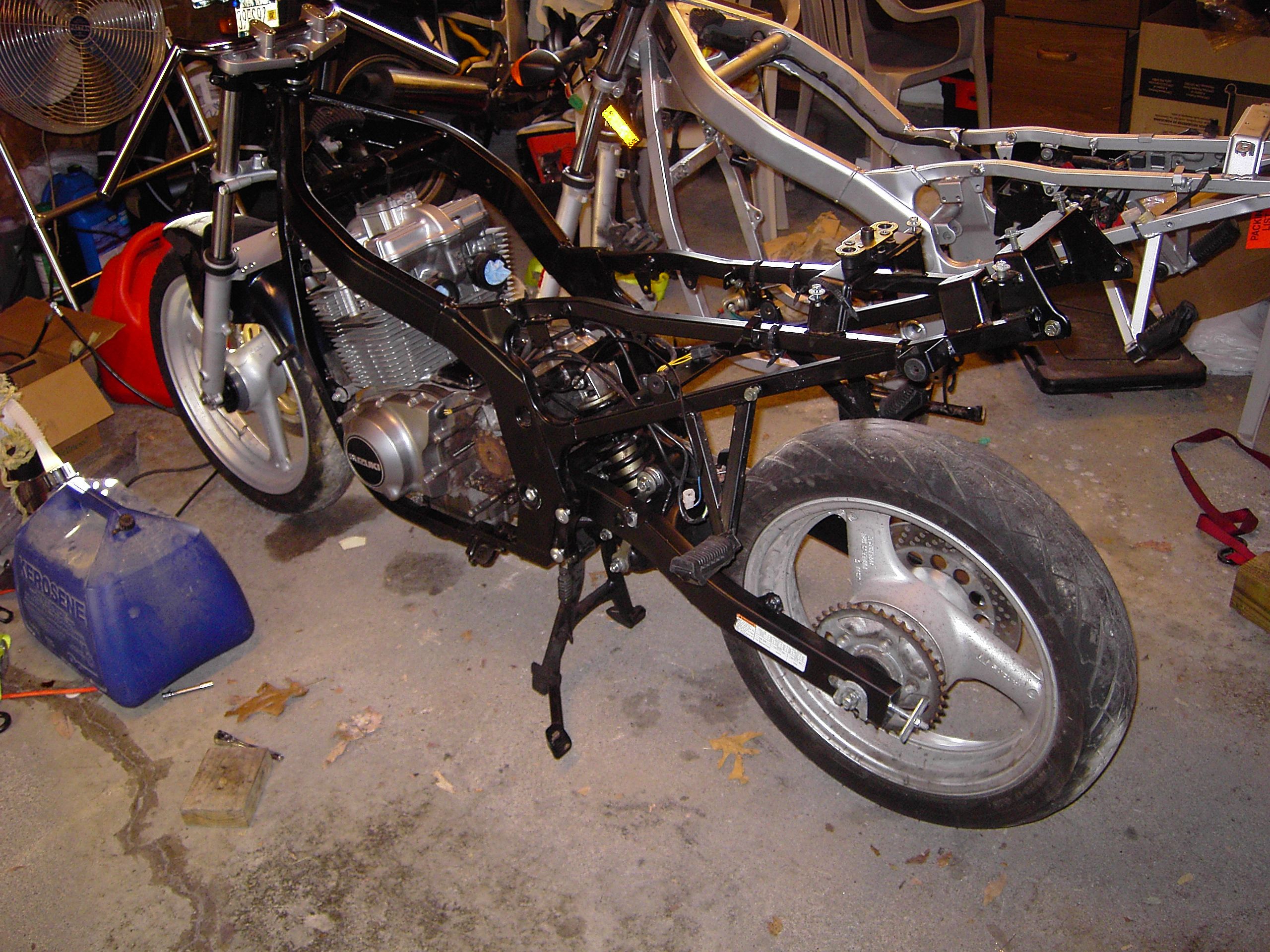

I slapped the GS wheel in so I can roll the frame around.  Also to make it look more like a motorcycle.  I can't tighten the axle because the brake caliper is not there, but I'm not going to ride it, so who cares.  When I get my tire in the mail, I'll mount it on the Katana rim and install that.  I also have a new rear sprocket to use.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1211.JPG -- Gallery: http://gsproject.codefarm.org/

Battery box goes in.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1212.JPG -- Gallery: http://gsproject.codefarm.org/

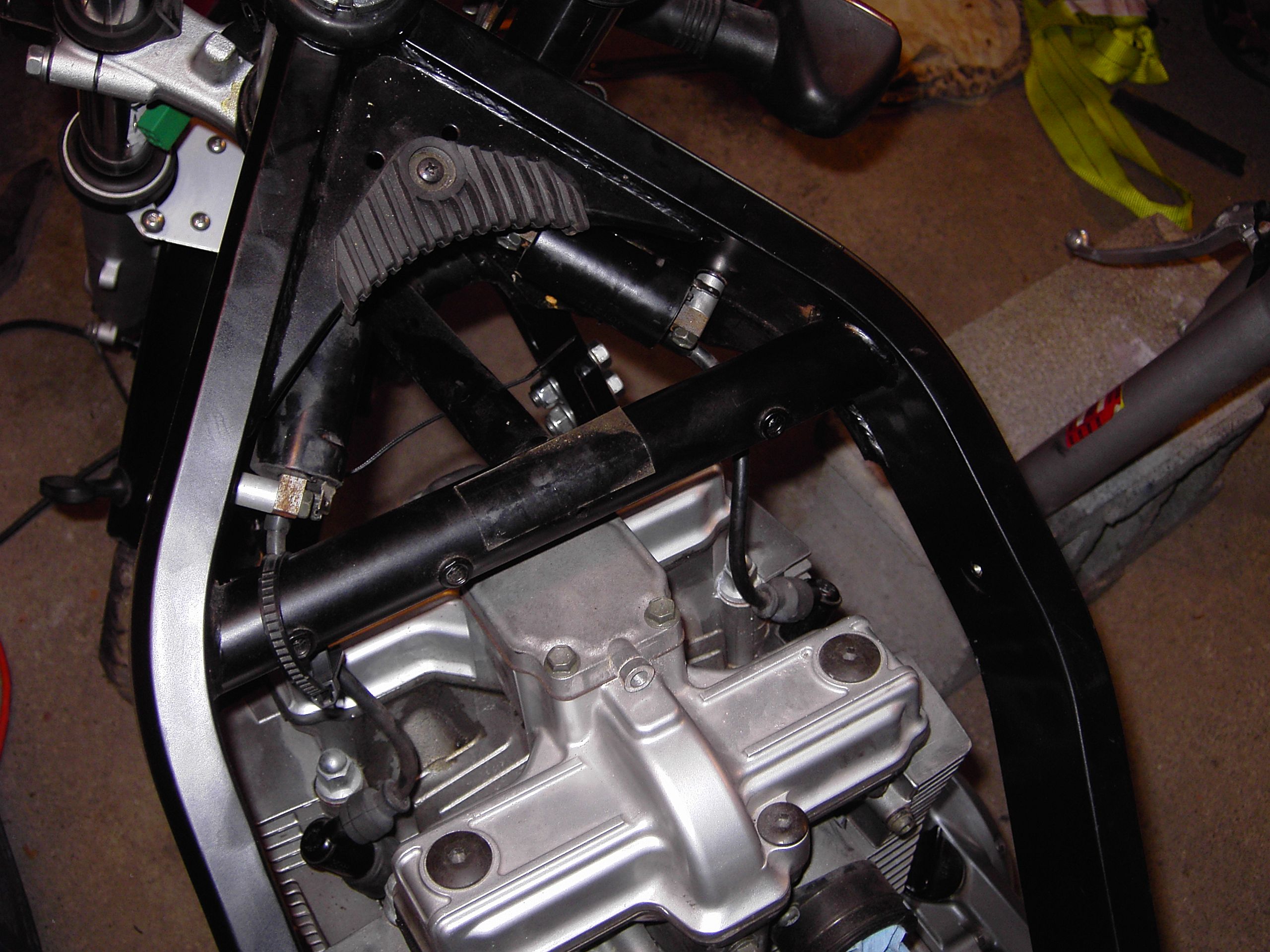

Coils.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1213.JPG -- Gallery: http://gsproject.codefarm.org/

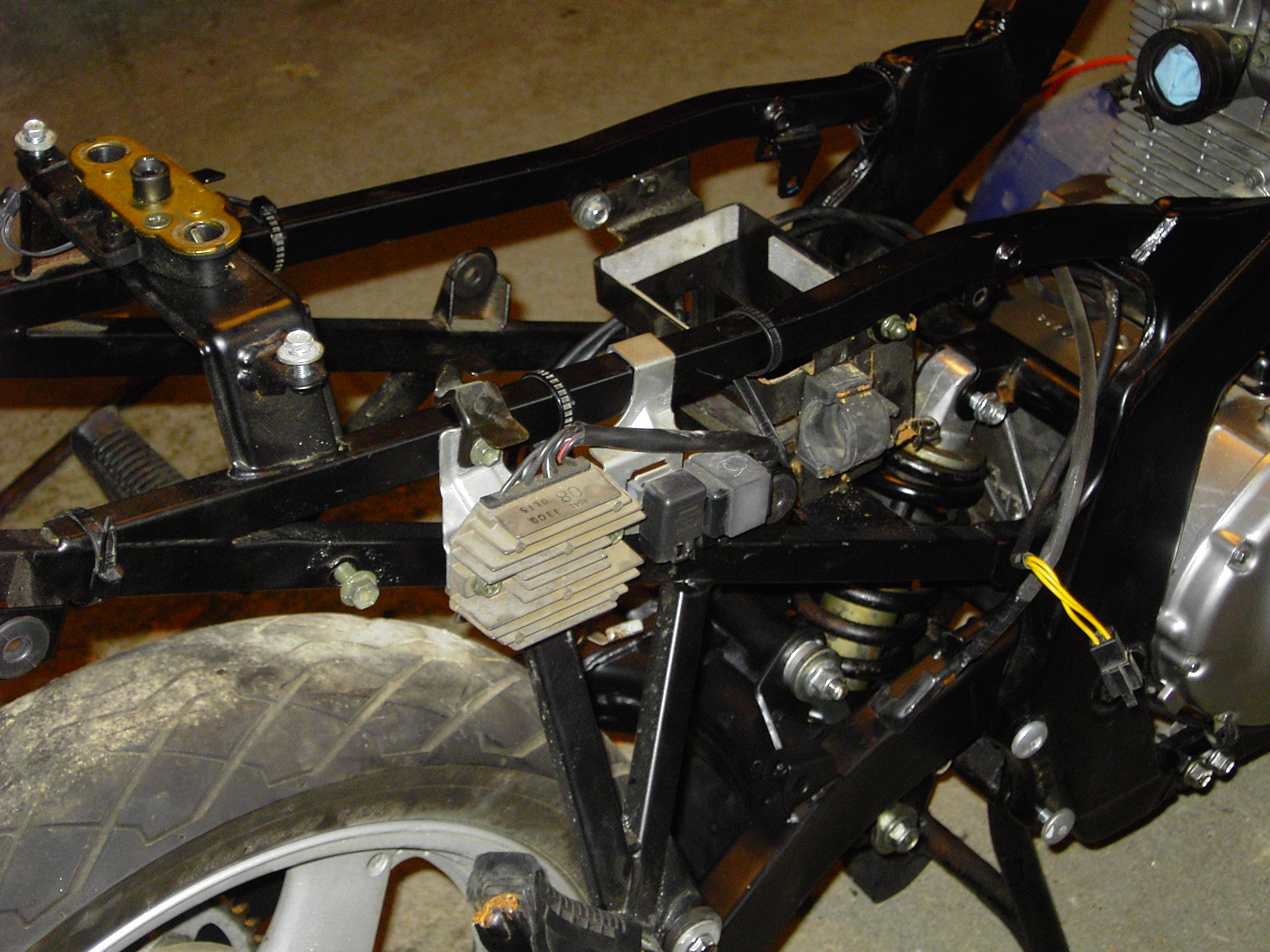

Electronic thingies.

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1214.JPG -- Gallery: http://gsproject.codefarm.org/

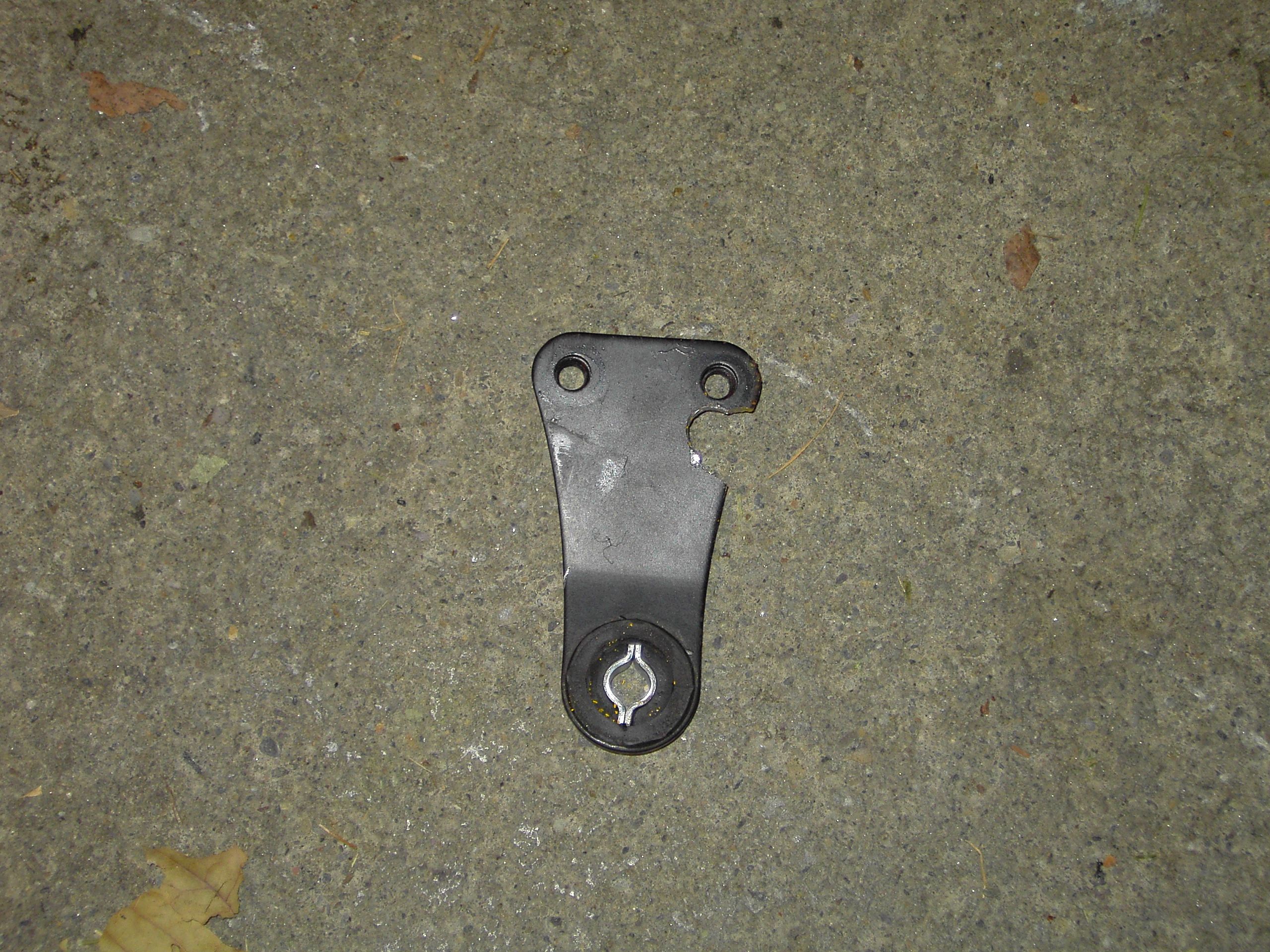

Here, I ran into my first incompatibility between the '01 and '04.  There is a nut welded to the frame, presumably for mounting the fairing, that interferes with the '01 horn bracket.  I cut out a piece of the bracket because I figured the remaining part would be strong enough to hold the horn.

[Chuck]

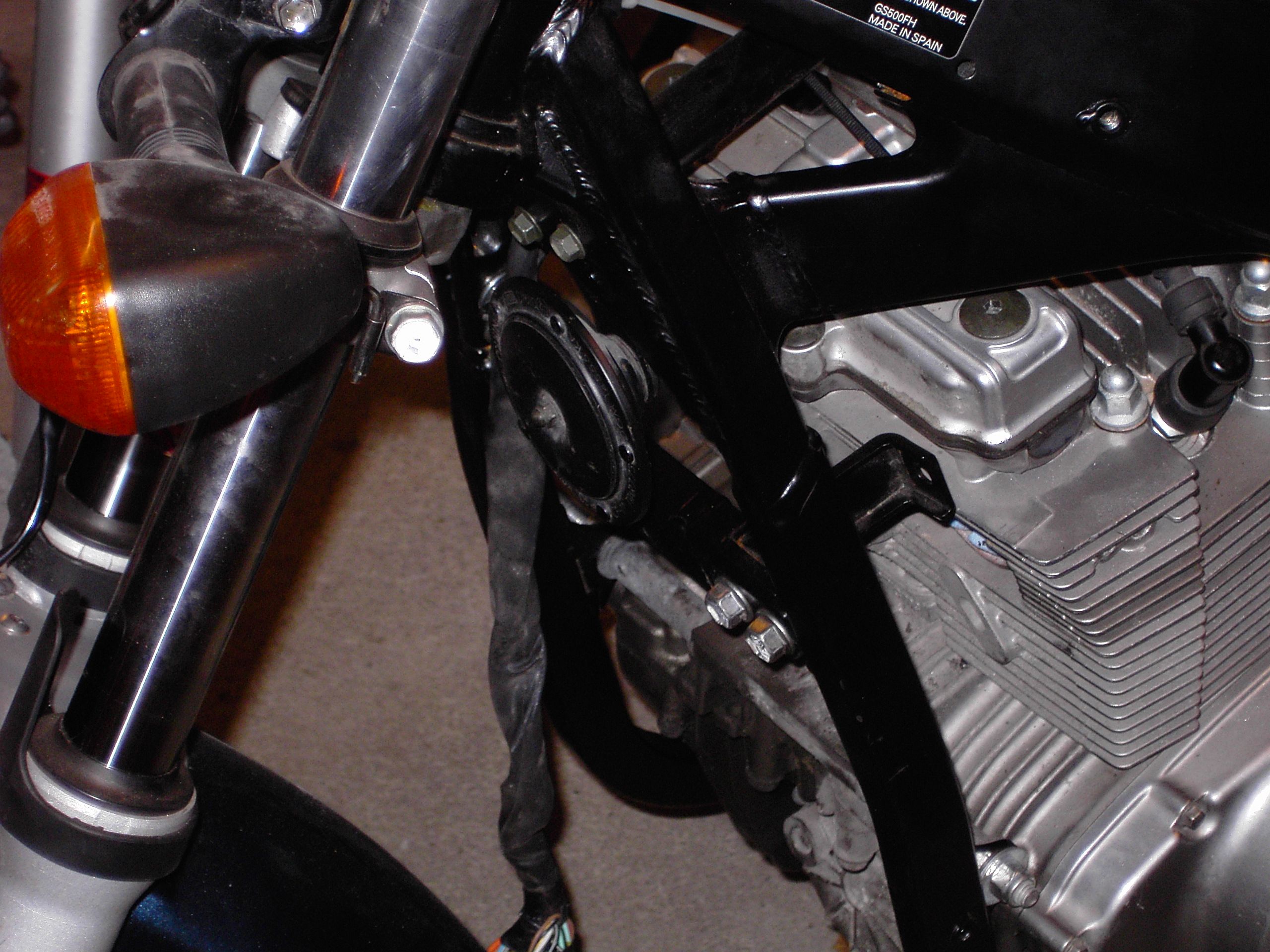

Full size: http://gsproject.codefarm.org/PICT1215.JPG -- Gallery: http://gsproject.codefarm.org/

After that, the horn went on with no difficulty.  I guess on the '04 they just cheesed out and mount the horn using only one of the bolts: http://houseofmotorcycles.bikebandit.com/partsbandit/assets/schematics/Suzuki/SU-04-2005-2803.gif

[Chuck]

Full size: http://gsproject.codefarm.org/PICT1219.JPG -- Gallery: http://gsproject.codefarm.org/

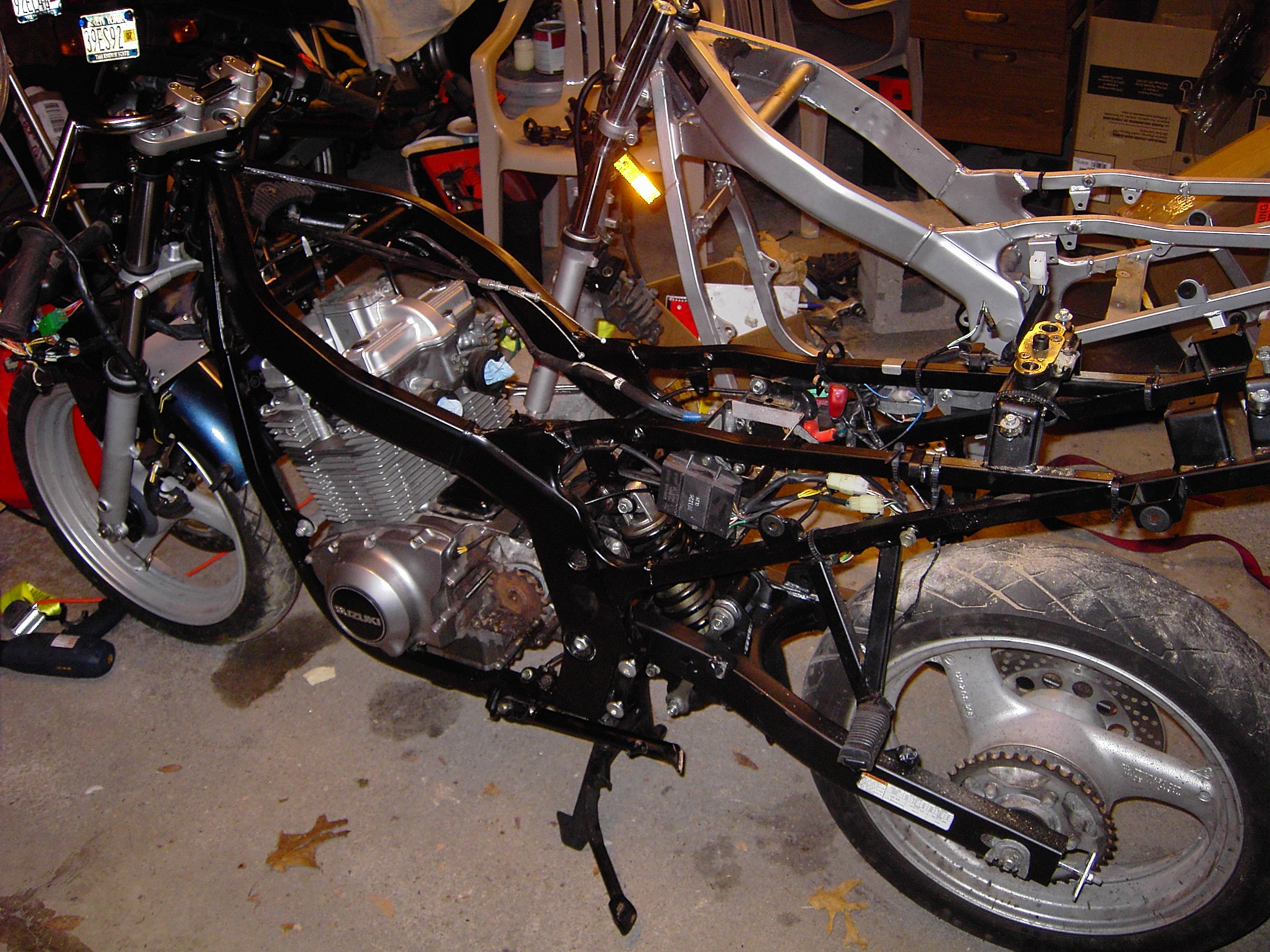

With the wiring completed, I call it a day.  It's the end of day 2, and I have to work tomorrow.  The electricals are all working, and I'm able to run the engine for a couple seconds by spraying some starting fluid in and touching the starter.  I never want to hear anything that loud for the rest of my life.  The carbs and exhaust are not installed, and it sounded really angry about it.

[Chuck]

200$ for a frame? Wow! Those go for a song here, because they are usually left after the Breakers have partet out the bike.

An undamaged frame with a clean title is worth a couple bucks.  It took me about 4 months to find this, so I snatched it up.
