FZR600 rear set for sale

[joshr08]

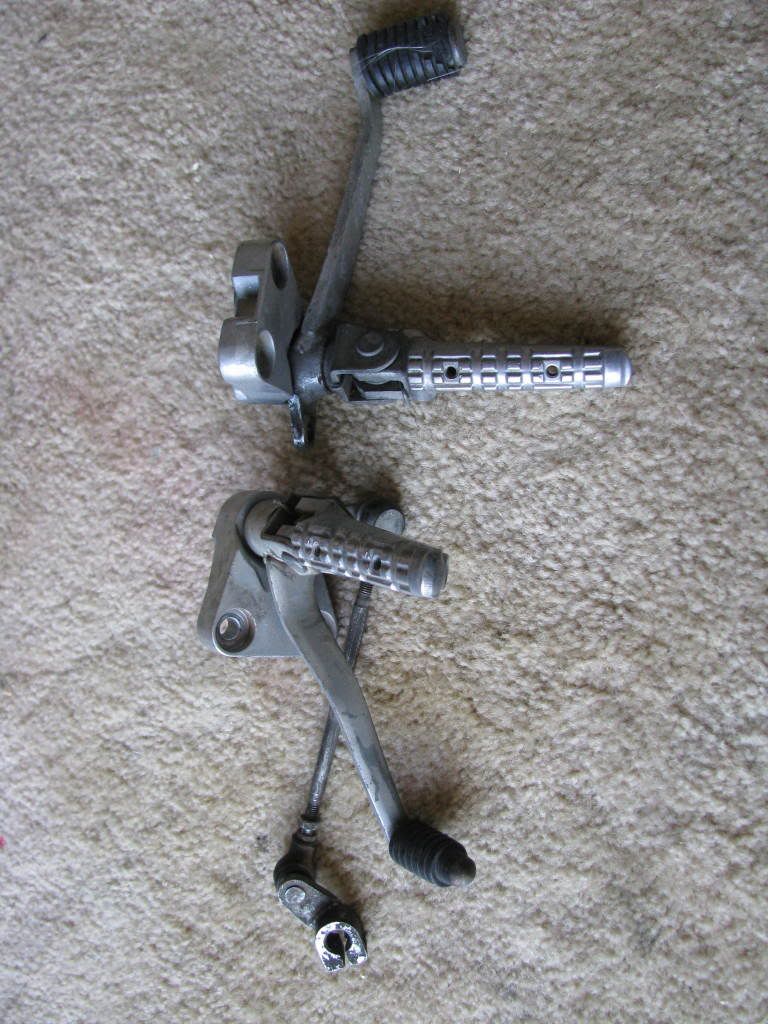

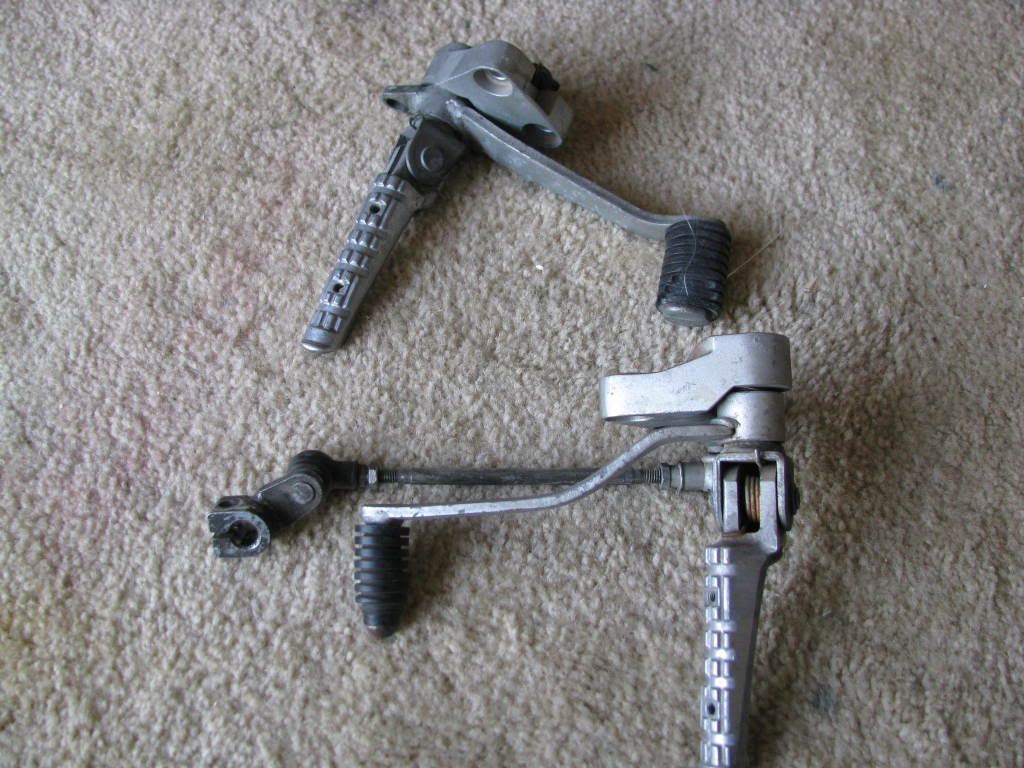

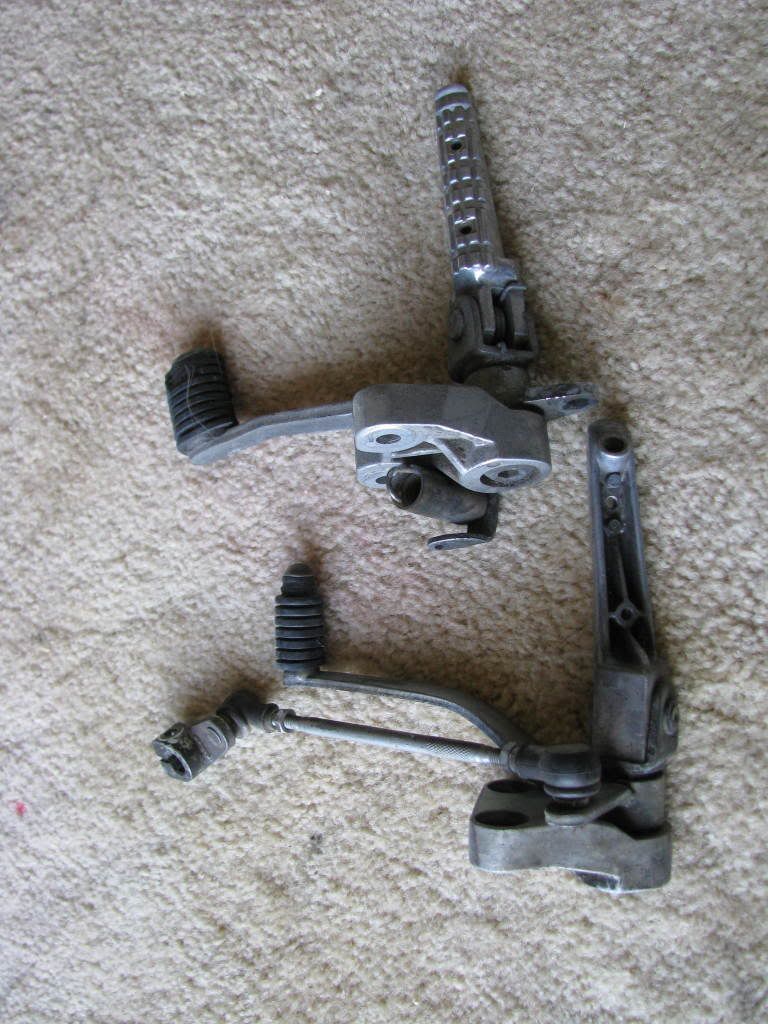

I have a set left and right rear sets for sale.  Im only looking to get what i paid for them back out of them so 40 shipped in the US

[Big Shot]

Do these work with the GS Josh?  Do they bolt on?  If so, have you bolted them on?  If not, what modifications will need to be made to make them work?


Thanks, Bob!

[joshr08]

These are not a direct bolt on you would have to make a plate for them to bolt on.  I have a plate design i was working on for the left one but I havent gotten around to doing the one for the right side.  If someone buys them i can also include my plate drawings or you can make your own to suit how you want them to fit.  One other option is to bolt throught the top or bottom stock hole and then drill a hole for the lower hole or vs versa and use the lower hole and drill a hole for an upper bolt.  Sorry I forgot to list this originally.  Thanks for bringing it up big.

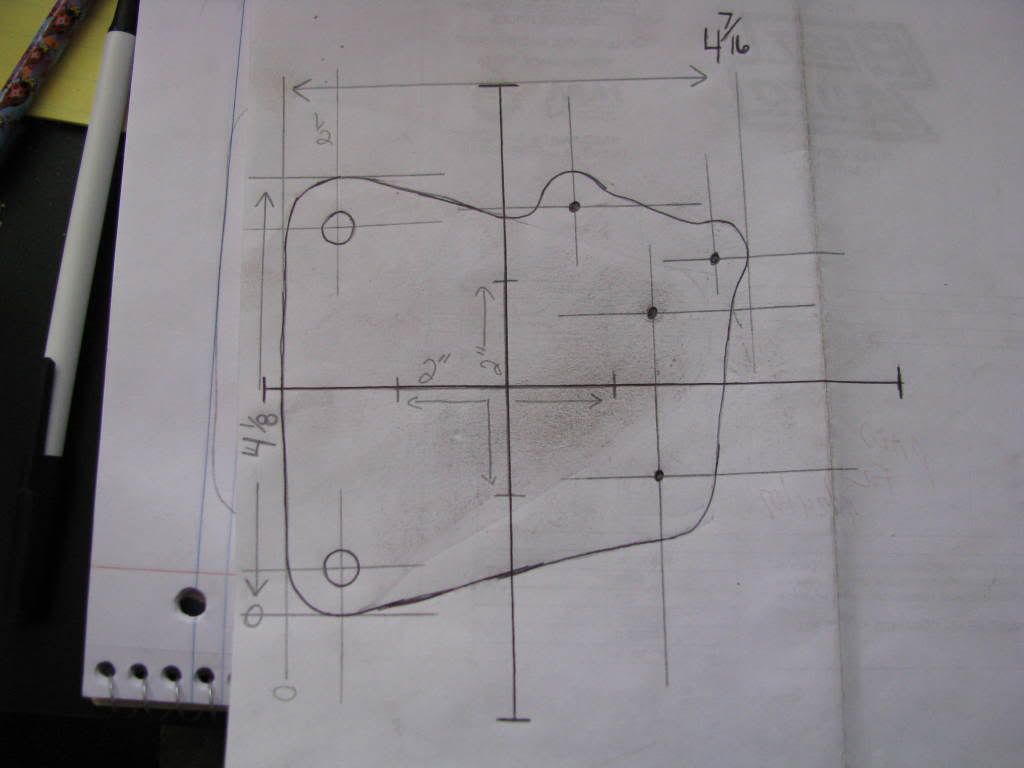

Here is the new mounting plate I was working on for the left side.

[Big Shot]

Since you never had them bolted up, how does the working condition of them appear to be?  Do the levers and pegs move freely through their range of motions without binding?  And i know that peg position compared to stock will be dependent on the bracket design, but do you think that the FZR shifter rod will work with most designs or will it need to be modified shorter/replaced with a longer one?


Thanks, Bob!

[joshr08]

When i pulled my left one off i checked it out and it will need to be made longer and the actual shifter end looks like it may need to be swapped out im not sure i didnt mess with it to much.  I was actually going to cut my shifter lever off at the base and weld it back together so it would have the right end on it.  Other then that they do seem to be in good working condition from the looks of it.  everything seems to move the way its suppost too.

[joshr08]

bump
