gsxr srad tail change
« on: June 06, 2006, 08:31:34 PM »
well iknow a few of the guys from the uk don't like the srad tail as its pritty fat, but that just means there is more of it to love:mr green:

basically all i needed to do this mod was;
1 hacksaw. 2 tape measure. 3. file. 4. 4xm10 bolts 5. pencil 6. srad subframe 7. srad brake light 8. srad tail cowl 9.srad seat plastics 10. srad front seat. 11. srad rear foot pegs 12. drill 13. drill bits

step 1 remove all the fairing and electrical gear out of the way
step 2 remove gs under tray
step 3 (the fun part) out with precision tool number 1 and cut that gs sub frame away. at the top it ended up i cut  50mm from the center of the tank mounting bolts and at the bottom 230mm from the engine side of the frame ( it was the only place i could get a consistant measurement from)

step 4 drill the 4 10mm mounting holes


step 5 mount srad subframe

step 6 was mount under tray and the rear half of the sub frame.
step 7 mount rear brake light and reroute all electrics,
step 8 cut a slot in the under side of the seat pad plastic so the fat gs battery would fit
step 9 paint the fairings and cowl
and finally step 10 put the seat fairings ect on the bike

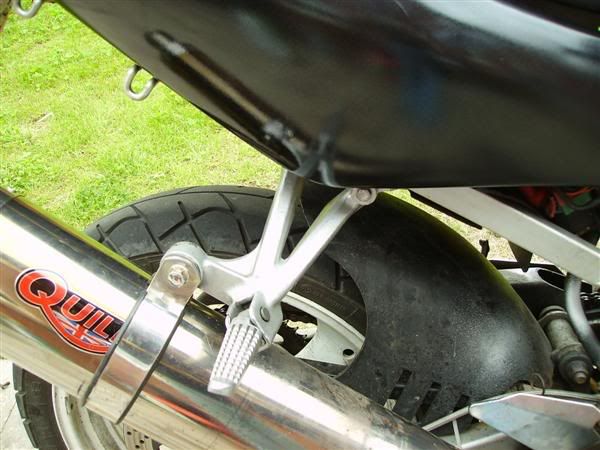

and the new not so ugly footpegs

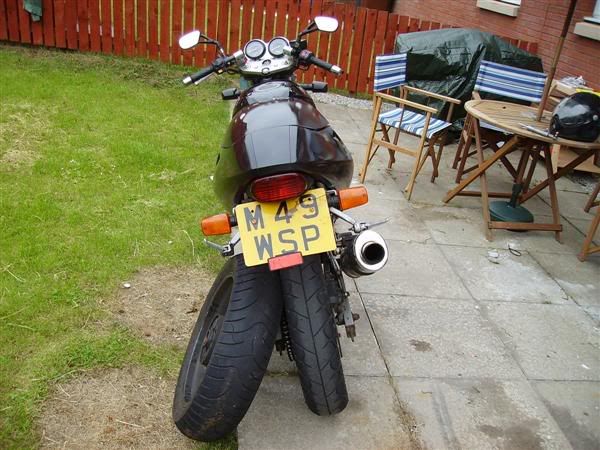

and the back with my new tyre (still to go on)

notice my precision workshop in the back ground, im not sure i could have done this mod with any thing less:mr green:
thats it im done
pod filters, costum r6 quill exhaust(no baffles)40/140 jets, heavy duty springs, sv650 rear shock, gsxr srad tail, bandit 600 4.5 inch rim with 150 tyre, gsx twin disc front end "1995 pocket rocket"  ridden by a kiwi in scotland

Offline blue05twin

  • Trade Count: (+2)
  • World Superbike Racer
  • *****
  • Posts: 1708
  • Karma: +0/-0
Re: gsxr srad tail change
« Reply #1 on: June 06, 2006, 08:37:49 PM »
WTG looks nice but I have a question . ..  .will 4 bolts be enough to hold the whole tail section together?
Pilot 22.5, Mid 65 , Mains 147.5, Mixture screw 3.5 turns out

Even if the voices aren't real they have some good ideas.

Offline hmmmnz

  • Trade Count: (0)
  • AMA Superbike Racer
  • ****
  • Posts: 706
  • Karma: +0/-0
Re: gsxr srad tail change
« Reply #2 on: June 06, 2006, 08:41:00 PM »
lol. thats all the gsxr has. im using all the same fixing points on srad frame as a standard srad.
pod filters, costum r6 quill exhaust(no baffles)40/140 jets, heavy duty springs, sv650 rear shock, gsxr srad tail, bandit 600 4.5 inch rim with 150 tyre, gsx twin disc front end "1995 pocket rocket"  ridden by a kiwi in scotland

Offline rangerbrown

  • Trade Count: (0)
  • World Superbike Racer
  • *****
  • Posts: 1346
  • Karma: +0/-0
  • GSXR WANA BE
Re: gsxr srad tail change
« Reply #3 on: June 06, 2006, 09:22:15 PM »
were can i get one?

can any one photo chop that on to a F model? and make it yellow


please.
nee down mother F***ers

Offline hmmmnz

  • Trade Count: (0)
  • AMA Superbike Racer
  • ****
  • Posts: 706
  • Karma: +0/-0
Re: gsxr srad tail change
« Reply #4 on: June 06, 2006, 09:27:07 PM »
i just brought everthing on ebay, subframe first, then the cowl then i got the tail light, then i got the seat, the last thing was the panels probly took me 3months but i was trying to spend the least amount possible, oh yeah the foot pegs cant forget them. i was soo good chopping the back of the gs off, i was almost tempted to just have the front subframe and have a gs rat bike  :icon_mrgreen:
pod filters, costum r6 quill exhaust(no baffles)40/140 jets, heavy duty springs, sv650 rear shock, gsxr srad tail, bandit 600 4.5 inch rim with 150 tyre, gsx twin disc front end "1995 pocket rocket"  ridden by a kiwi in scotland

Offline Kasumi

  • Trade Count: (0)
  • World Superbike Racer
  • *****
  • Posts: 1621
  • Karma: +0/-0
  • GS500 100hp mod.
Re: gsxr srad tail change
« Reply #5 on: June 06, 2006, 09:27:49 PM »
It would look good in yellow, maybe some black stripes. Would look like a bumble bee or wasp with the fat end and stripes hehehehe O0
Custom Kawasaki ZXR 400

Offline My Name Is Dave

  • Trade Count: (0)
  • World Superbike Racer
  • *****
  • Posts: 1747
  • Karma: +0/-0
Re: gsxr srad tail change
« Reply #6 on: June 06, 2006, 09:32:31 PM »
That tail looks enormous on the GS. It's bigger than the tank.

I thought about doing this with an R6 tail once, but I am lazy and cheap.

Dave
Quote from: AlphaFire X5
Man, I want some wine right now. Some pinot noir...yeah, that sounds nice

Offline Kasumi

  • Trade Count: (0)
  • World Superbike Racer
  • *****
  • Posts: 1621
  • Karma: +0/-0
  • GS500 100hp mod.
Re: gsxr srad tail change
« Reply #7 on: June 06, 2006, 09:40:40 PM »
R6 tail would look good, but the R1 (the flat tailed one with the small row of LEDs for the tail light) would look ace. The flat section would probably meet up with the shape and size of the tank perfectly especially in terms of height, this is going on if you had the seat cowl on also. The R1 tail could get built in indicators into the tail light for a nice clean end. Would look fantastic i think.



This one i think if you could mount at the right angle so height matched height of the tank, it would look bril  :thumb:
Custom Kawasaki ZXR 400

Offline My Name Is Dave

  • Trade Count: (0)
  • World Superbike Racer
  • *****
  • Posts: 1747
  • Karma: +0/-0
Re: gsxr srad tail change
« Reply #8 on: June 06, 2006, 09:46:40 PM »
Yeah, that year R1 tail would be bad to the bone marrow. The only reason I thought R6 was because there was one in excellent condition with subframe on CL for like $150. Would have been a sick mod, but I have an '05, and she doesn't like when I operate on her. Infants, you know?

Dave
Quote from: AlphaFire X5
Man, I want some wine right now. Some pinot noir...yeah, that sounds nice

Offline hmmmnz

  • Trade Count: (0)
  • AMA Superbike Racer
  • ****
  • Posts: 706
  • Karma: +0/-0
Re: gsxr srad tail change
« Reply #9 on: June 06, 2006, 10:55:32 PM »
yeah i probably wouldn't have done it if it was a new bike but its a crappy old gs and not worth anything, its just transport and some thing to keep me busy.
i would have done a r6 or r1 but i couldn't find any thing cheep on ebay, and i dont have acess to welding equipment, i just assumed the gsxr would have roughly the same sort of dimensions for the subframe, and besides no one had done it :D
pod filters, costum r6 quill exhaust(no baffles)40/140 jets, heavy duty springs, sv650 rear shock, gsxr srad tail, bandit 600 4.5 inch rim with 150 tyre, gsx twin disc front end "1995 pocket rocket"  ridden by a kiwi in scotland

Offline RVertigo

  • PostWhore Extraordinaire
  • Trade Count: (0)
  • Motorcycle God!
  • ******
  • Posts: 7265
  • Karma: +0/-0
Re: gsxr srad tail change
« Reply #10 on: June 06, 2006, 11:14:52 PM »
That tail looks enormous on the GS. It's bigger than the tank.
That's what I was thinking...  It looks like an ant with a huge thorax...

If it was smaller, that would be totally slick.

Offline weaselnoze

  • noobie no no
  • Trade Count: (0)
  • Motorcycle God!
  • ******
  • Posts: 3083
  • Karma: +0/-0
  • the red robot thing is ghey now.
    • http://weaselnoze.matrixdancer.com/
Re: gsxr srad tail change
« Reply #11 on: June 07, 2006, 03:01:05 AM »
hollly effing huge!

http://weaselnoze.matrixdancer.com/

RIP RICH! We'll miss you buddy!

Offline rangerbrown

  • Trade Count: (0)
  • World Superbike Racer
  • *****
  • Posts: 1346
  • Karma: +0/-0
  • GSXR WANA BE
Re: gsxr srad tail change
« Reply #12 on: June 07, 2006, 03:08:16 AM »
wouldn't look that bike on the F model
nee down mother F***ers

Offline hmmmnz

  • Trade Count: (0)
  • AMA Superbike Racer
  • ****
  • Posts: 706
  • Karma: +0/-0
Re: gsxr srad tail change
« Reply #13 on: June 07, 2006, 06:30:10 AM »
i think you right you dont notice it at all when the tank bag is on there, i d say it would be the same with the fairing.
pod filters, costum r6 quill exhaust(no baffles)40/140 jets, heavy duty springs, sv650 rear shock, gsxr srad tail, bandit 600 4.5 inch rim with 150 tyre, gsx twin disc front end "1995 pocket rocket"  ridden by a kiwi in scotland

Offline onefastgs500

  • Trade Count: (+2)
  • Formula Extreme Racer
  • ***
  • Posts: 369
  • Karma: +0/-0
Re: gsxr srad tail change
« Reply #14 on: June 07, 2006, 11:57:32 AM »
didn't rgv's have a similar tail but scaled down a lot?anyone know- werase643?
90 red 628cc 67hp racebike  90 fj1200streetbike
                              lee adams
