Gear indicator "NEW" Approach Project Finished
« on: May 18, 2018, 11:00:31 AM »
Hey folks!

I really miss a gear indicator... I confess!

However, I do not like these magnetic sensor knickknacks... I never tried, but, I don't believe they are reliable, furthermore, they are expensive and difficult to install

The ideal is to get the information (gear position) directly from the gear rod!!! there is no other PROPPER way!

One of these days popped into my mind an idea... believing that many parts on a bike follow factory standards, I searched for gear positioning sensor from other suzukis... and guess what.

The results of my "research" was a laugh!

The gear (neutral sensor) for a gs in  my country currency is 130..



Note that it comes with one contact only.

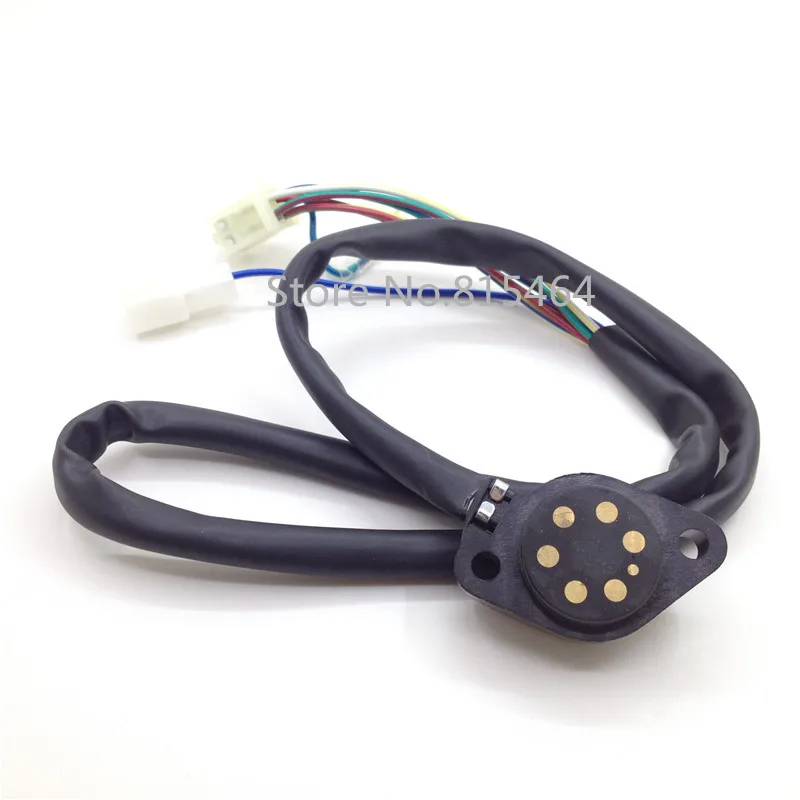

In the other hand... the GN 125:


Has a gear sensor that costs 50 and came with 7 contacts!



(f%$king parts dealers!  :flipoff: :flipoff:)

I already installed the sensor in my gs... the neutral indicator  is working perfectly!

NOW... I ordered this:

LED 6 Speed Digital Gear Indicator Motorcycle Shift Lever Gauge Waterproof N - 6



and I hope that will only link some wires...

I guess that in US you can do it with about 20 dollars or less.

I am not 100% certain that it will work exactly as expected... so before giving my Approval Stamp (lol) better to wait untill it is finished and tested.

In about 60 days.. the display will arrive... then I finish this post.. with more detailed info about the installation.







« Last Edit: July 24, 2018, 12:51:17 PM by Kito »
2004 Track/Street Rat .... or maybe just trash!
Reverse Gear Shifting (topic=72206.0)
Quick and Cheap Shifter (topic=72099.0)
Gear indicator (topic=72403.0)
Thumb Brake Loading (topic=72143.0)
Clipons

Offline mr72

  • Trade Count: (0)
  • World Superbike Racer
  • *****
  • Posts: 1664
  • Karma: +24/-0
  • Musician, Engineer, Sci-Fi Author
    • Josh's Books
Re: Gear indicator NEW Approach
« Reply #1 on: May 18, 2018, 02:04:53 PM »
Love it. Let us know how it goes.  :thumb:

Offline sledge

  • Trade Count: (+2)
  • Motorcycle God!
  • ******
  • Posts: 4243
  • Karma: +42/-0
  • He's Mr Brightside

Offline Kito

  • Trade Count: (0)
  • AMA Supersport Racer
  • **
  • Posts: 97
  • Karma: +5/-0
  • slow and low!
Re: Gear indicator not so NEW Approach
« Reply #3 on: May 18, 2018, 11:00:54 PM »
http://gstwins.com/gsboard/index.php?topic=15563.0

 :laugh: :laugh: :laugh: :laugh:

Seems not thaaaat "NEW" ...however I will have  carefully read in all posts...

anyway I will make an update in this thread  considering the other one is from 2005...

Dude you have a awesome memory!

at the figure below:
n is the neutral plug
and the "?" mark is I dont know yet what it is

2004 Track/Street Rat .... or maybe just trash!
Reverse Gear Shifting (topic=72206.0)
Quick and Cheap Shifter (topic=72099.0)
Gear indicator (topic=72403.0)
Thumb Brake Loading (topic=72143.0)
Clipons

Offline KHnTX

  • Trade Count: (0)
  • Local Club Racer
  • *
  • Posts: 30
  • Karma: +1/-0
Re: Gear indicator NEW Approach
« Reply #4 on: May 19, 2018, 05:17:52 AM »
I'd be interested if this works myself, dug around some and found this tidbit about someone who's neutral light stayed on all the time on their gn125.  Could be it's for the side stand switch?

"The side stand switch set up usually has three points to trigger it, the side stand switch it self, a clutch switch (usually located under the clutch lever like the front brake switch for the tail light, and the neutral switch, (located near the gear lever shaft, usually a pale green wire).

Sounds like you're friend has grounded the neutral switch, so the system always thinks is in neutral.

Put the neutral sender wire back where it is supposed to be, cut the wires from the side stand switch and join the two wires together..."

http://advrider.com/index.php?threads/91-suzuki-gn125-dies-when-put-in-gear.607941/


Sent from my ONEPLUS A3000 using Tapatalk


Offline Kito

  • Trade Count: (0)
  • AMA Supersport Racer
  • **
  • Posts: 97
  • Karma: +5/-0
  • slow and low!
Re: Gear indicator NEW Approach
« Reply #5 on: May 19, 2018, 03:21:07 PM »
Sorry, I could be more specific when talking about that green loose wire.

It came as a branch from the 6į gear.

Those annotations that I posted was readings directly from the switch installed on the motorcycle when changing gears.

I connected the multimeter positive wire on the battery + and tested each terminal until get the 12V readings while engaging the gears...

So .. seems that everything is working as it should

The part number  that I am using is
37720-45f10-000
« Last Edit: May 19, 2018, 03:33:54 PM by Kito »
2004 Track/Street Rat .... or maybe just trash!
Reverse Gear Shifting (topic=72206.0)
Quick and Cheap Shifter (topic=72099.0)
Gear indicator (topic=72403.0)
Thumb Brake Loading (topic=72143.0)
Clipons

Offline Kito

  • Trade Count: (0)
  • AMA Supersport Racer
  • **
  • Posts: 97
  • Karma: +5/-0
  • slow and low!
Re: Gear indicator NEW Approach
« Reply #6 on: May 19, 2018, 08:39:07 PM »
2004 Track/Street Rat .... or maybe just trash!
Reverse Gear Shifting (topic=72206.0)
Quick and Cheap Shifter (topic=72099.0)
Gear indicator (topic=72403.0)
Thumb Brake Loading (topic=72143.0)
Clipons

Offline KHnTX

  • Trade Count: (0)
  • Local Club Racer
  • *
  • Posts: 30
  • Karma: +1/-0
Re: Gear indicator NEW Approach
« Reply #7 on: May 19, 2018, 10:41:13 PM »
Wonder if the one I ordered will work then.  37720-44700 is what I found, but it doesn't have the extra green wire connection that you have.

Sent from my ONEPLUS A3000 using Tapatalk


Offline Kito

  • Trade Count: (0)
  • AMA Supersport Racer
  • **
  • Posts: 97
  • Karma: +5/-0
  • slow and low!
Re: Gear indicator "NEW" Approach
« Reply #8 on: May 20, 2018, 09:15:58 PM »
Seems (very) ok to me.
2004 Track/Street Rat .... or maybe just trash!
Reverse Gear Shifting (topic=72206.0)
Quick and Cheap Shifter (topic=72099.0)
Gear indicator (topic=72403.0)
Thumb Brake Loading (topic=72143.0)
Clipons

Offline Kito

  • Trade Count: (0)
  • AMA Supersport Racer
  • **
  • Posts: 97
  • Karma: +5/-0
  • slow and low!
Re: Gear indicator "NEW" Approach
« Reply #9 on: July 24, 2018, 11:56:26 AM »
hey.. sorry for the delay.
the project turned out to be solid and reliable when working. :woohoo:
only problem was , at least for the red led set, when direct sun hit over it.. becomes bit dificult to see the numbers.

Maybe the blue can be better , however just a cover can solve it

video here... cheers

2004 Track/Street Rat .... or maybe just trash!
Reverse Gear Shifting (topic=72206.0)
Quick and Cheap Shifter (topic=72099.0)
Gear indicator (topic=72403.0)
Thumb Brake Loading (topic=72143.0)
Clipons

Offline KHnTX

  • Trade Count: (0)
  • Local Club Racer
  • *
  • Posts: 30
  • Karma: +1/-0
Re: Gear indicator "NEW" Approach Project Finished
« Reply #10 on: July 28, 2018, 05:56:58 PM »
Looks good.  I have the blue indicator, but I haven't gotten around to starting that project yet.  Glad to see it works.

Sent from my ONEPLUS A3000 using Tapatalk


Offline Hop13b

  • Trade Count: (0)
  • Local Club Racer
  • *
  • Posts: 1
  • Karma: +0/-0
Re: Gear indicator "NEW" Approach Project Finished
« Reply #11 on: July 30, 2018, 09:30:43 AM »
Hi kito,
That looks awsome, just what I am looking for!
Could you please post details of construction and where you aquired the led display.
Was it on ebay?
I am sure that there are other members who would like an indicator like this.
  Cheers  Phil (hop13b)

Offline Kito

  • Trade Count: (0)
  • AMA Supersport Racer
  • **
  • Posts: 97
  • Karma: +5/-0
  • slow and low!
Re: Gear indicator "NEW" Approach Project Finished
« Reply #12 on: July 30, 2018, 11:20:02 AM »
On ebay search for this
"LED 6 Speed Digital Gear Indicator Motorcycle Shift Lever Gauge Waterproof N - 6"

I dint used the N ant the display... because not worth the trouble as the neutral light works at it should.

I will post a small video, ok?

But to be honest I believe that everything thats really matters is already posted above.

2004 Track/Street Rat .... or maybe just trash!
Reverse Gear Shifting (topic=72206.0)
Quick and Cheap Shifter (topic=72099.0)
Gear indicator (topic=72403.0)
Thumb Brake Loading (topic=72143.0)
Clipons

Offline Kito

  • Trade Count: (0)
  • AMA Supersport Racer
  • **
  • Posts: 97
  • Karma: +5/-0
  • slow and low!
Re: Gear indicator "NEW" Approach Project Finished
« Reply #13 on: July 30, 2018, 12:46:47 PM »

sorry, was not only my voice an English that was shitty.. also was my memory,,, actually I used not A green cable to extract the 12v, instead, I used an ORANGE one, that comes from the keyswitch.
« Last Edit: July 30, 2018, 12:52:49 PM by Kito »
2004 Track/Street Rat .... or maybe just trash!
Reverse Gear Shifting (topic=72206.0)
Quick and Cheap Shifter (topic=72099.0)
Gear indicator (topic=72403.0)
Thumb Brake Loading (topic=72143.0)
Clipons

Offline crackin

  • Trade Count: (0)
  • Formula Extreme Racer
  • ***
  • Posts: 240
  • Karma: +3/-0
Re: Gear indicator "NEW" Approach Project Finished
« Reply #14 on: August 01, 2018, 09:32:21 AM »
I can't understand why you need a gear indicator. If the gear you are in isn't pulling hard enough change down, if the valves are bouncing change up.
  I drive 18 speed overdrive eaton boxes and they don't have gear indicators. I just don't get it. :dunno_black:
No matter what i do to it, it's still a GS
 It's not how fast your bike is, it's how long you are prepared to hold the throttle on.

Offline Kito

  • Trade Count: (0)
  • AMA Supersport Racer
  • **
  • Posts: 97
  • Karma: +5/-0
  • slow and low!
Re: Gear indicator "NEW" Approach Project Finished
« Reply #15 on: August 01, 2018, 11:18:51 AM »
Gear indicator helps you to get consistency when riding in track and in roads that you are familiar with.

For instance, you know that "that" turn is a 3rd gear,  the other is a 5th gear, and so on.... If you like to travel, sightseeing... etc... this has no point. Makes sense just for when you know the "circuit/road" that you are riding in.

Together with visual makers (to brake and turn) you stop to ride in the "seat of one's pants" style, and start to get in a more "technical ridding".

Some peolple (old timers lol) used to count to keep track of the gears... nowadays, however, gear indicator ar present in most of the sport bikes.

cheers  :cheers:
« Last Edit: August 01, 2018, 11:46:36 AM by Kito »
2004 Track/Street Rat .... or maybe just trash!
Reverse Gear Shifting (topic=72206.0)
Quick and Cheap Shifter (topic=72099.0)
Gear indicator (topic=72403.0)
Thumb Brake Loading (topic=72143.0)
Clipons

Offline sledge

  • Trade Count: (+2)
  • Motorcycle God!
  • ******
  • Posts: 4243
  • Karma: +42/-0
  • He's Mr Brightside
Re: Gear indicator "NEW" Approach Project Finished
« Reply #16 on: August 01, 2018, 07:02:42 PM »
Maybe I am old school but I can't say I have ever felt the need for one. I can understand the sense of achievement from constructing something likes this but to me it's just something that draws your attention from the things that matter and it wouldn't alter the way I ride or control the bike in the slightest :dunno_black:

Offline Kito

  • Trade Count: (0)
  • AMA Supersport Racer
  • **
  • Posts: 97
  • Karma: +5/-0
  • slow and low!
Re: Gear indicator "NEW" Approach Project Finished
« Reply #17 on: August 01, 2018, 08:29:15 PM »
Again, this is aimed for sporting ridding and sport ridding only. It will not make sense outside this point of view.

Is not a mandatory instrument, indeed!

However even very... very... very (and every) experienced riders use it... including motogp ones

What I mean is: it is not a trinket or a useless toy.

Here an interesting link from a very interesting bloke https://lifeatlean.com/top-3-motorcycle-gear-indicators/


and bellow some pictures (note that the gear is the bigger indicator in the display....  denoting the importance of this kind of information)

Cheers :cheers:








« Last Edit: August 01, 2018, 09:26:38 PM by Kito »
2004 Track/Street Rat .... or maybe just trash!
Reverse Gear Shifting (topic=72206.0)
Quick and Cheap Shifter (topic=72099.0)
Gear indicator (topic=72403.0)
Thumb Brake Loading (topic=72143.0)
Clipons

Offline sledge

  • Trade Count: (+2)
  • Motorcycle God!
  • ******
  • Posts: 4243
  • Karma: +42/-0
  • He's Mr Brightside
Re: Gear indicator "NEW" Approach Project Finished
« Reply #18 on: August 02, 2018, 12:28:45 PM »
Perhaps if I was to ride on the road like I would a track.........but I donít.
