I was inspired by russomf and quiktaco's streetfighter/cafe build. my rear fairings were cracked and in kindof rough shape when i bought the bike from previous owner. I have since taken them off and sold them.

what i have done:

reupholstered the seat
relocate wiring under tank (i'll explain later)
changed spark plugs
new front turn signal
new D.I.D o-ring chain
front sprocket
rear sprocket
.95 Sonic Springs
cut the rear frame (after wiring was finalized)
Cut off rear pegs
relocated license plate
create bracket for seat lock
new fuel lines + inline filter
K&N filter
Yosh RS-3 slipon (having trouble finding an exhaust shop to agree to modify)
Buddha magic carbs (40 pilots 150 mains 1 washer 3 turns)
Buddha brand fork brace (powder coat blue)

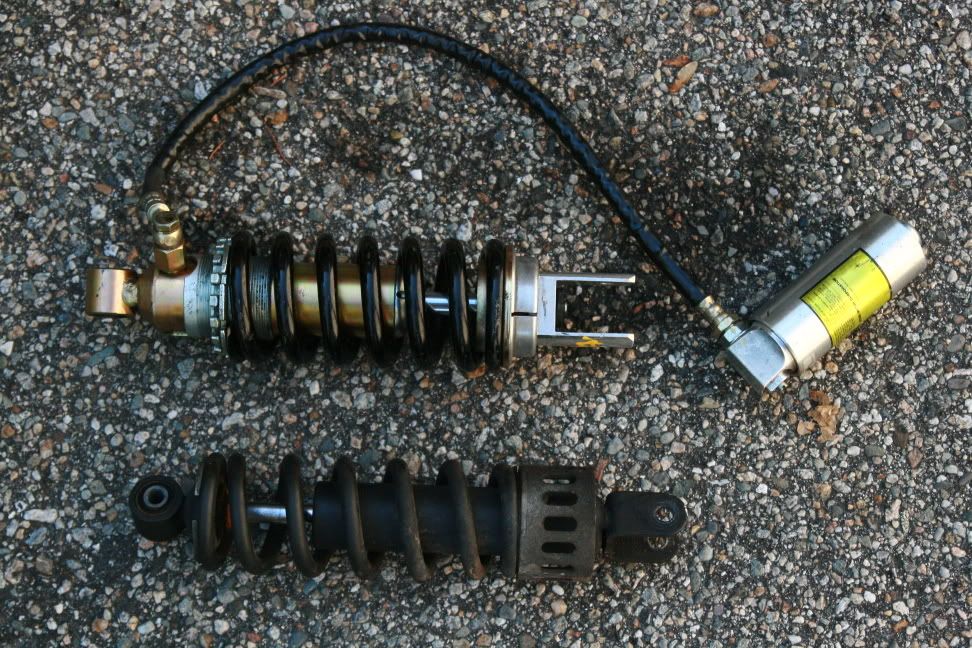

Katana 750 rear shock with remote resevoir (DROP IN!!!) (thanks Buddha)[/s]
zx636 integrated LED tail light
electronic blinker relay (solves LED blink problems)
89 clipons (thanks Buddha)
20ft paint job with PJ1 fast black epoxy spray paint. (will try a roll on paint come spring)
Charged battery
Bar end mirrors
Katana clutch perch/lever
aftermarket footpegs
blue led in instruments

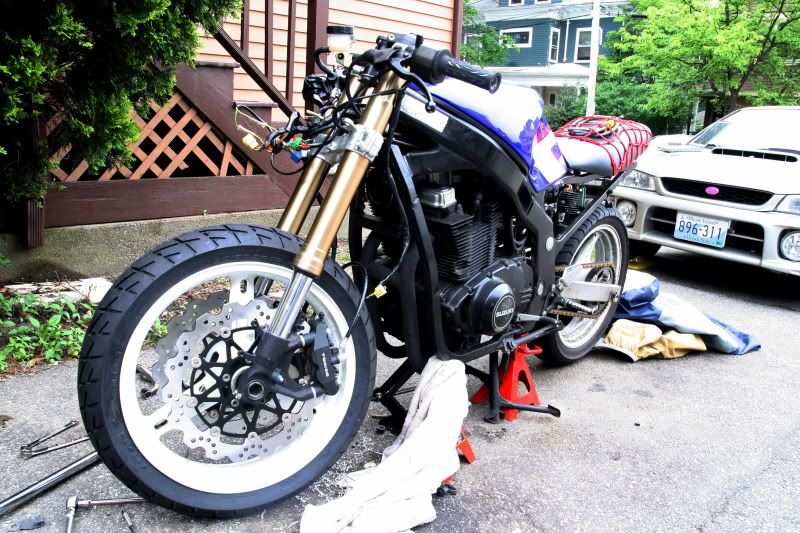

2006 gsxr 600/750 forks (update 2009)
2006 gsxr radial calipers with master cylinder and brake lines (update 2009)
2006 gsxr axle/spacer (update 2009)
01-03 (k1-k3) gsxr wheel (update 2009)
Katana/SV650 Rear wheel (powdercoated white)
320mm Rotors (k1-k3 / hayabusa) (update 2009)
2006 gsxr clipons (update 2009)
New GS500 steering bearings (update 2009)
Acewell 280x Series Gauge (update 2009)
WORKS Performance rear shock (10/2009)



Planning for future:
Big bore for larger pistons
SV650 headlight


TOOLS I USED:
wrenches
sockets
drill (with bits for metal)
angle grinder (grinding stone, cutting disk)
nuts bolts, screwdrivers
soldering iron
zipties/electric tape/really really small female spade terminals
heat shrink wrap

Wiring:
I went to radio shack and purchased a "project box". I mounted this box using two short pieces of aluminum angle stock. 4 holes in the bottom of the box, two on each side. i bolted it to the angle aluminum. I drilled a hole in the aluminum and bolted it to where the stock airbox mounted. (see pictures below). Now to get the wires into the box; i carved out some slots on the front and back of the box so the wires can enter the box. THE WIRING WAS LEFT INTACT. I ONLY EXTENDED 4 WIRES. I mounted the "ECU/brain thing" thats normally found on the left hand side under the project box. i relocated the rectifier to the old ecu/brainbox location. The only thing what is behind the battery is the 5 wires that go to the tail light.

Frame:
After the wiring was all set, i was clear to cut. This is my first motorcycle. I don't plan on having a passenger as its only used to commute to and from school (60 miles/day). I used the cutting disc on the grinder to chop off the rear right after the lower/upper frame join. (like russomf's ride). i cut the rear pegs but left enough to mount the muffler, when/if this happens. after all was cut/grinded smooth, i sprayed it with two coats of spray paint. But i'm really interested in roll on application when it gets warmer in spring. i also painted the headlight bucket black, and while i know its a spray job, i'm pretty happy with the results.

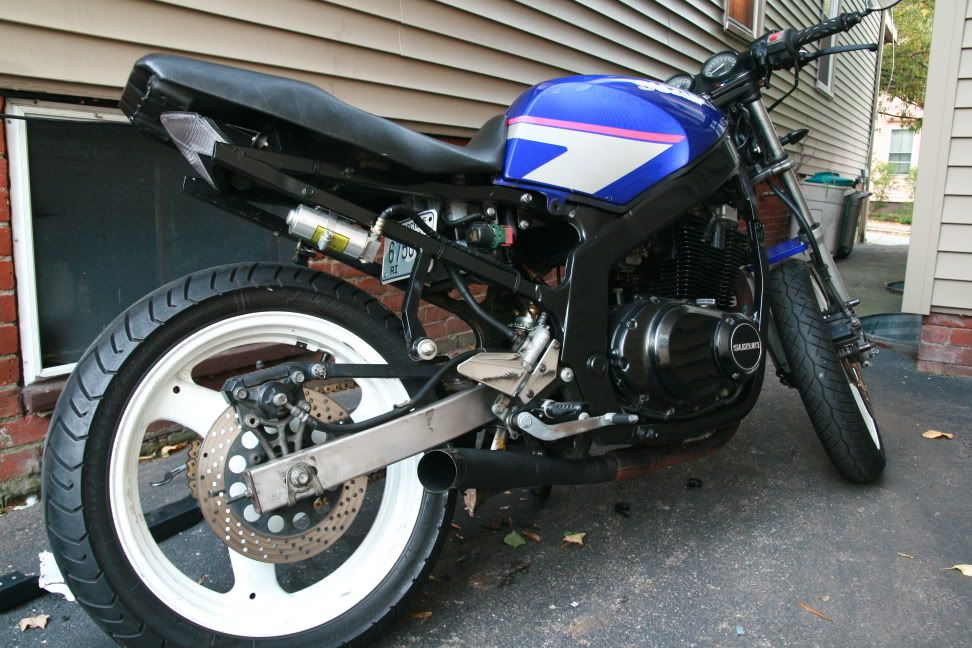

onto pictures. the bike runs great, but is still needing the pipe welded on. I have been to two shops and they say their welding machines would blast right through the thin midpipe section so modifying it would be difficult. i dunno, i really wanted to avoid spending more on a full header back. but the sound of the rs-3 is amazing and was much cheaper.

Things i need to do:
learn how to do valve clearance/adjustment
extract a seized bolt from the far left of the head
learn how to align the rear wheel
(learn how to swap the bandit 600 wheel i have sitting in my room)
someday katana fe/brakes
create brackets for chin fairing i have.....or just sell it and get a case guard (re: my first bike) not sure yet


pictures?

[psyber_0ptix]

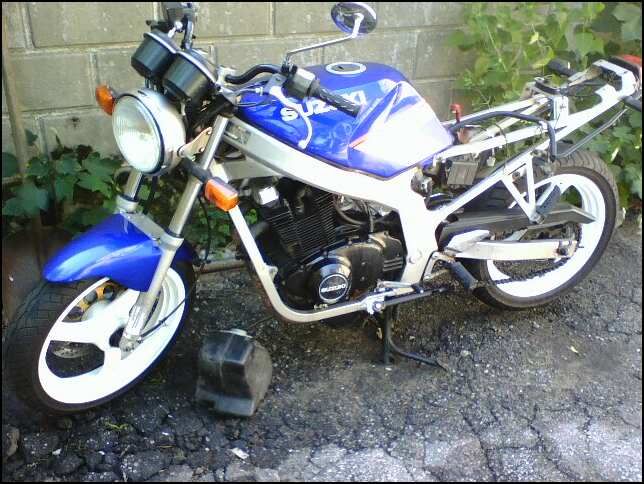

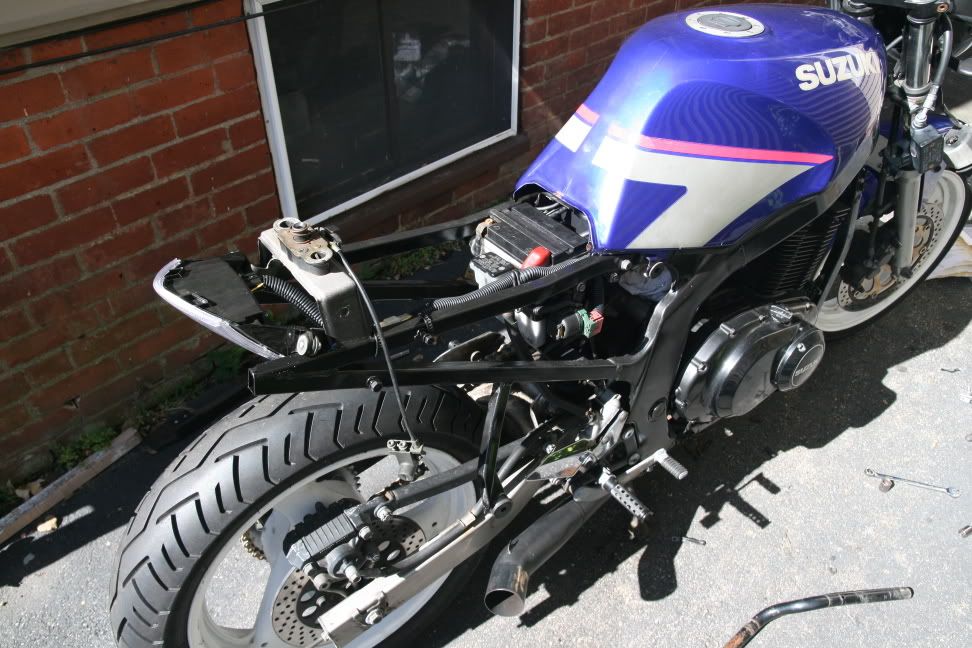

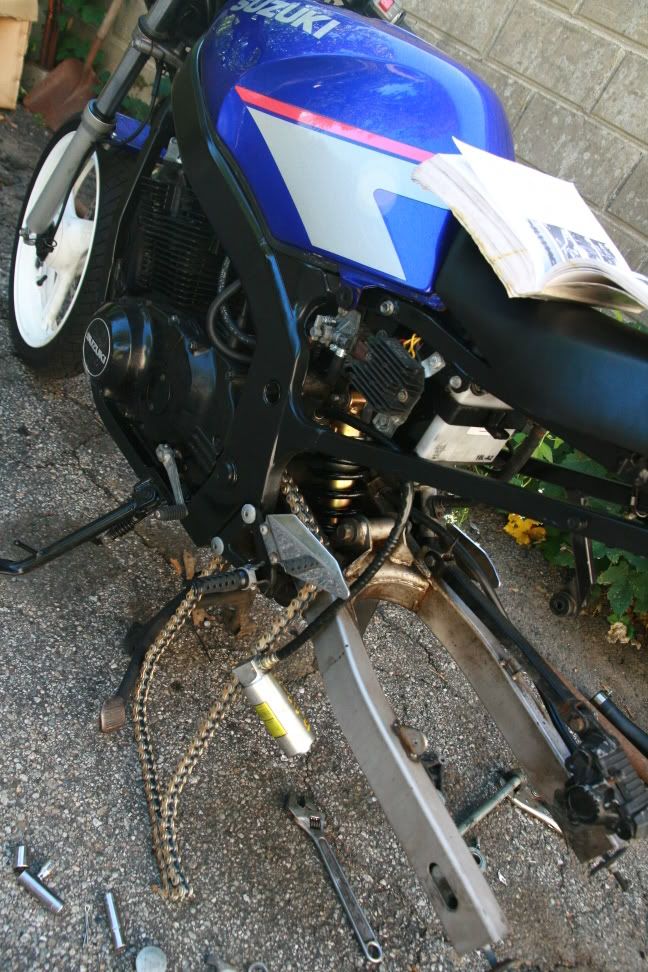

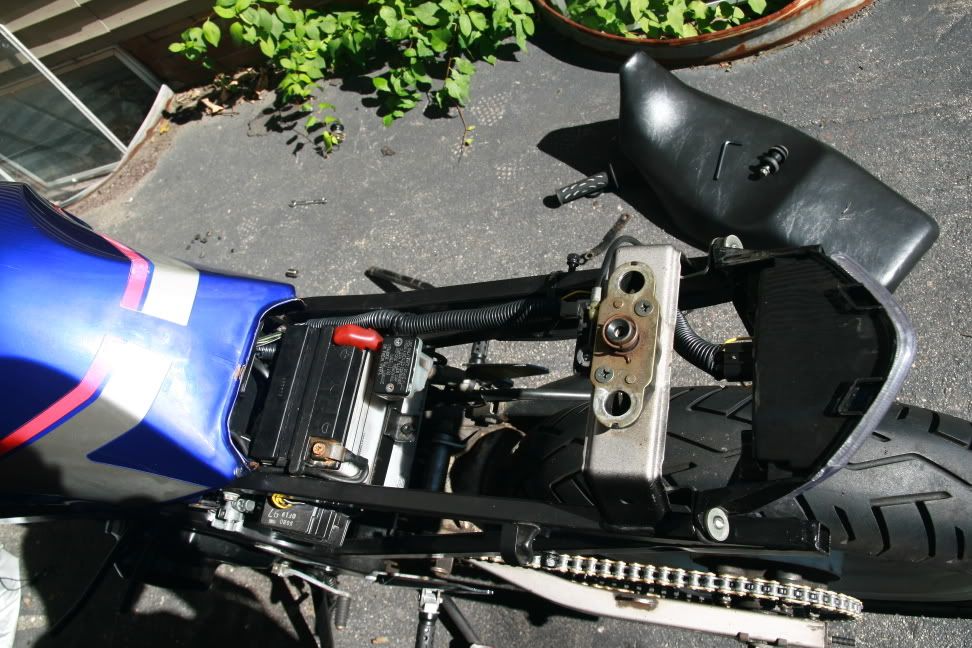

Before chop/ after wiring:

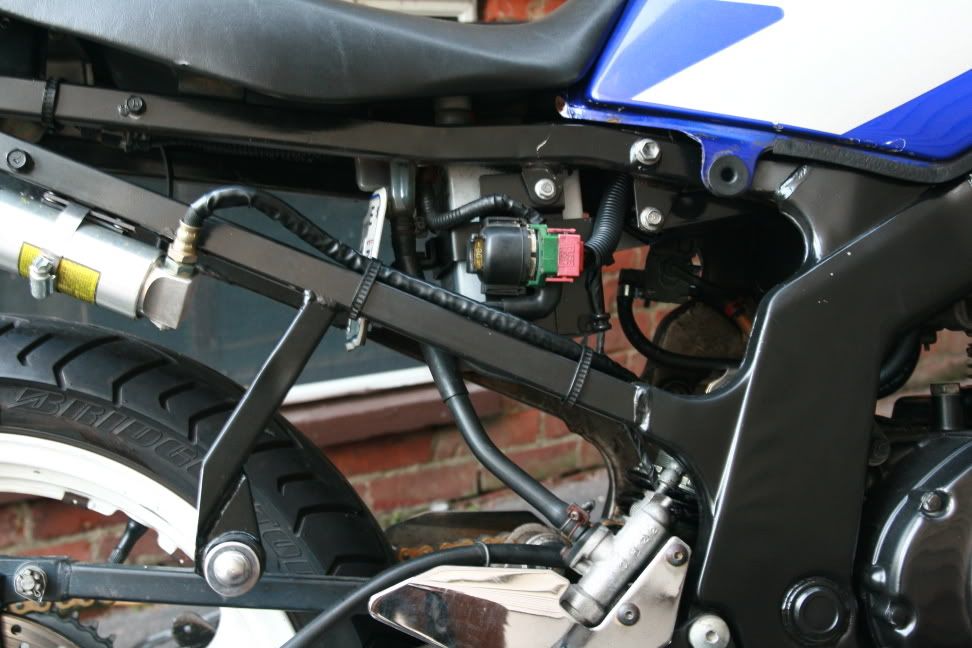

what wires look like:

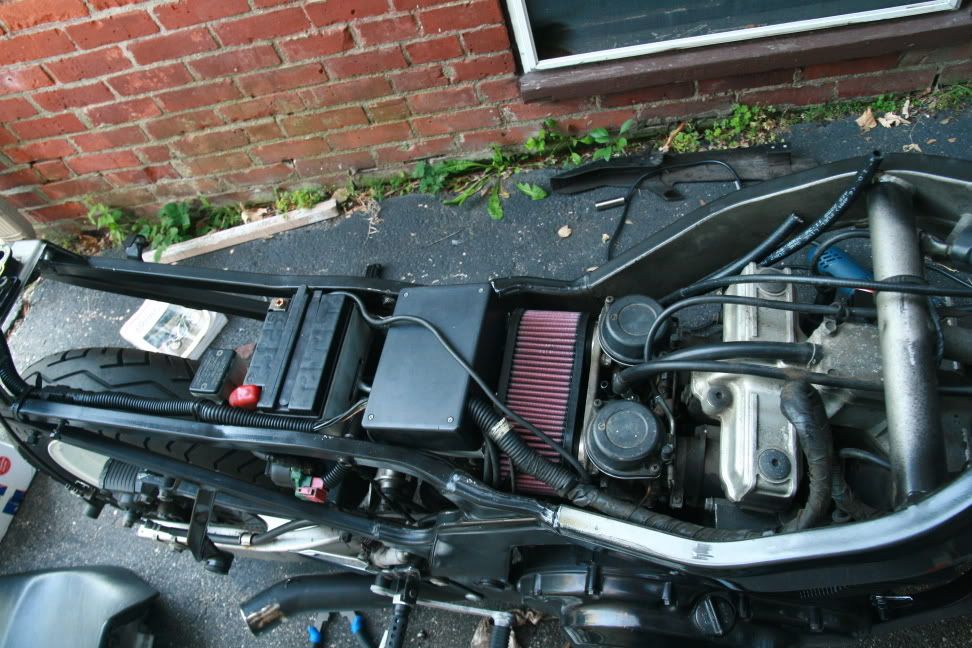

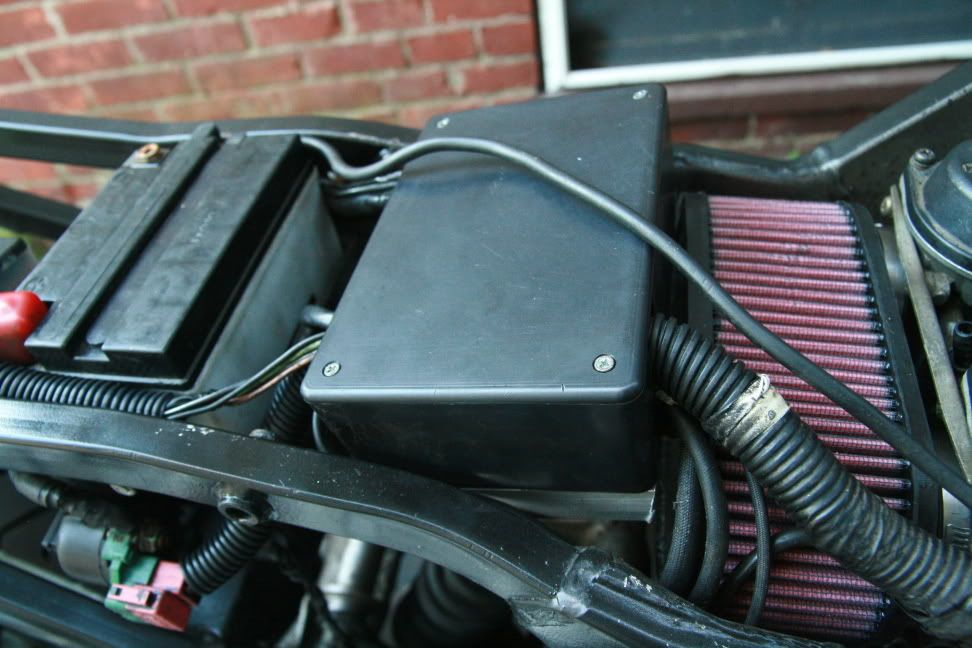

the project box/wire concealment:

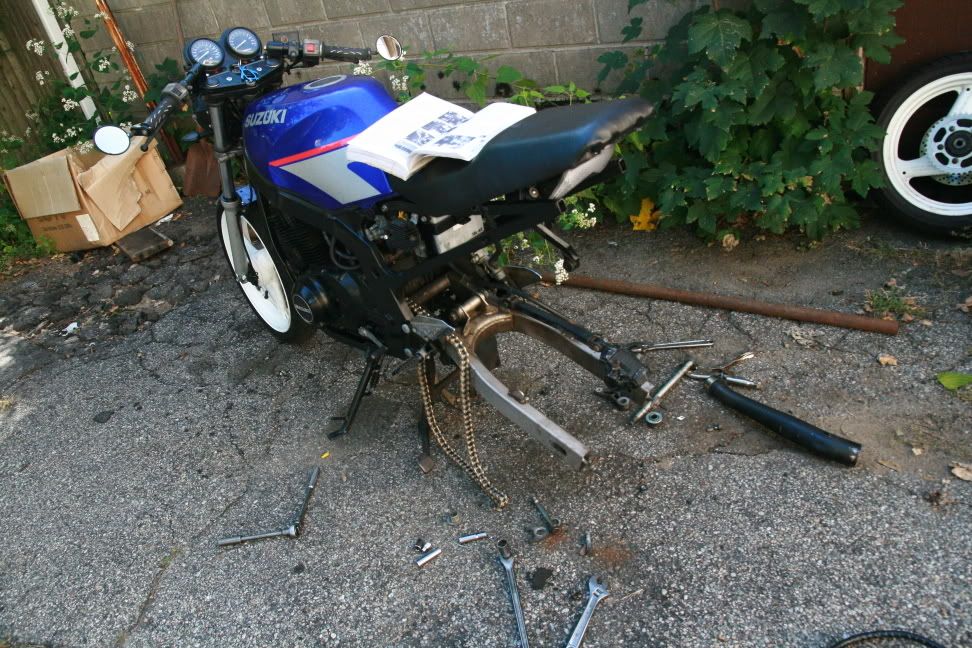

out with the old, in with the new
